Husqvarna Automower 520H EPOS Robotic Mower 1.25 Acres (970717905)
$3,989.99
Description
Included
-
Charging station: Yes
-
Extra blades: 6 pcs
-
Wheel brushes: Yes
-
Power supply unit: Yes
-
Low voltage cable: 10 m
Not included
-
Reference Station
Overview

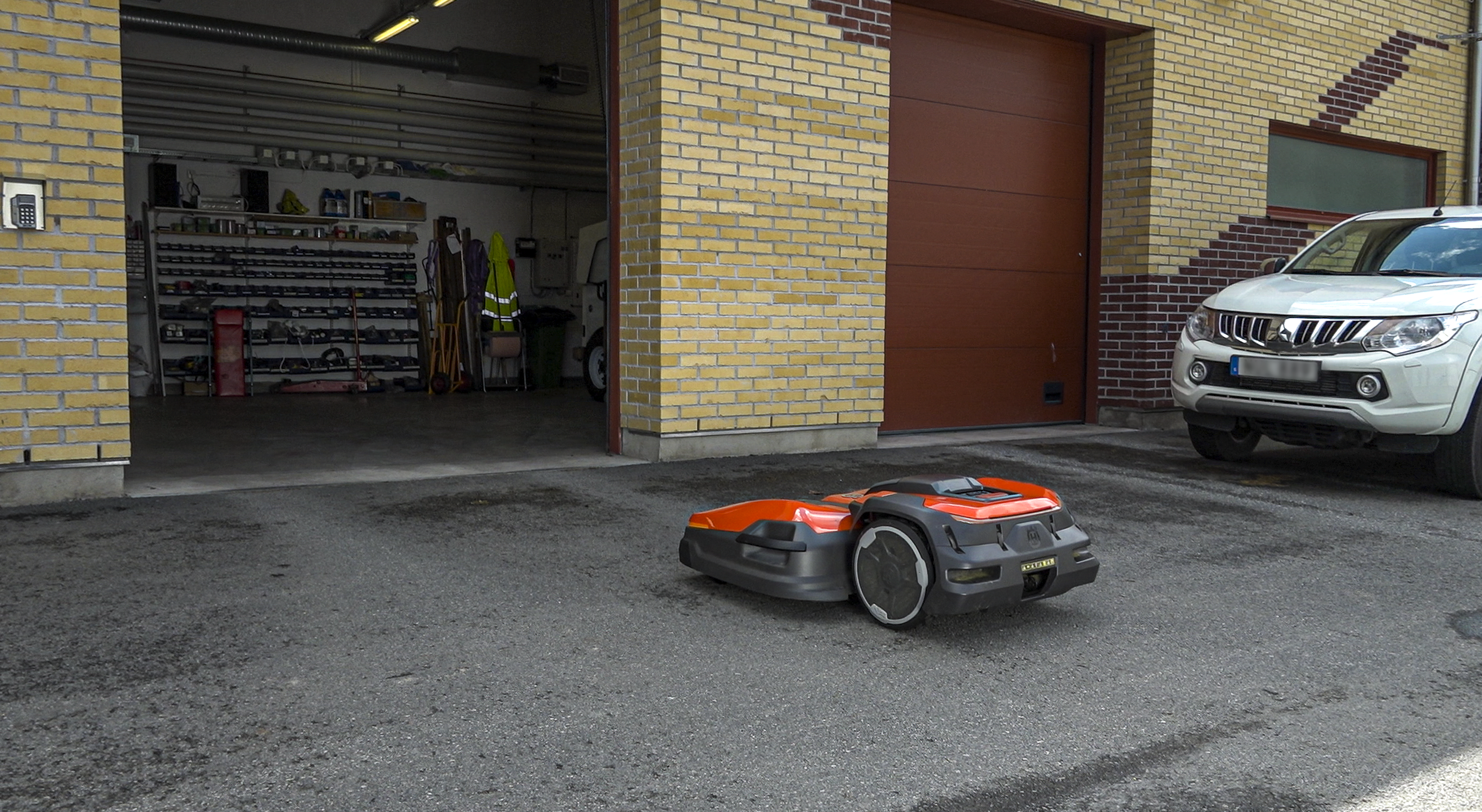

Husqvarna Automower® 520H EPOS™ – a high-capacity robotic mower for commercial fleet use and mowing of green areas up to 1.25 acres. Fully equipped model featuring Husqvarna EPOS™ guidance with transport paths, AppDrive and precise area management. With virtual boundaries you can define several work areas with different settings as well as set temporary stay-out zones. Designed to achieve a cutting height of up to 3.6″ (≈90mm) on all types of lawns, navigates narrow passages and manages slopes up to 45% (24°) with perfect cutting results – even in rainy conditions. EPOS™ RS5 Reference Station required.
Features:
- 1.25 Acre Cutting Range (5,000 square meters)
- Minimum Cutting Height 2.0 Inches
- Max Cutting Height 3.6 Inches
- Cutting Width 9.45 Inches
- 5.0 AH Lithium Ion Battery
- Maximum Slope Performance 45%
- Virtual Boundary with Support by Wire Available
- Automower Connect App Controlled
-
Safety & Collision Sensors

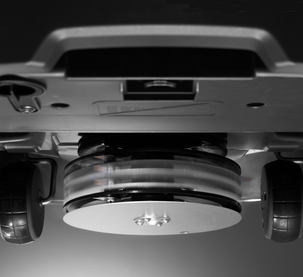

Automower® is designed with safety in mind. The central placement of the cutting disc provides wide space between the blades and the outer body of the mower. Additionally, the blades instantly stop and retract inward as soon as the mower is lifted, or an object is detected thanks to built-in collision sensors.
-

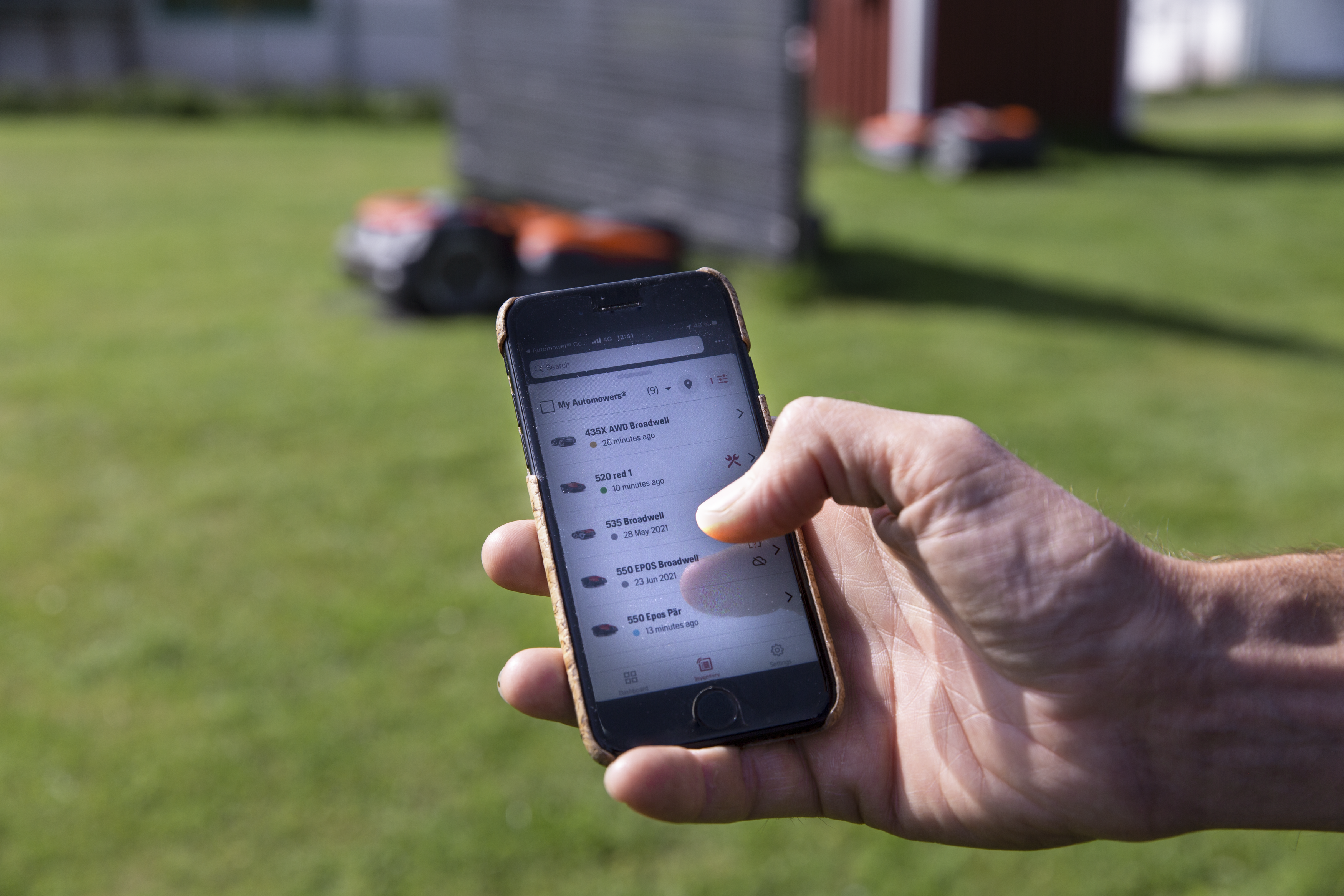

Husqvarna Fleet Services™
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.
-

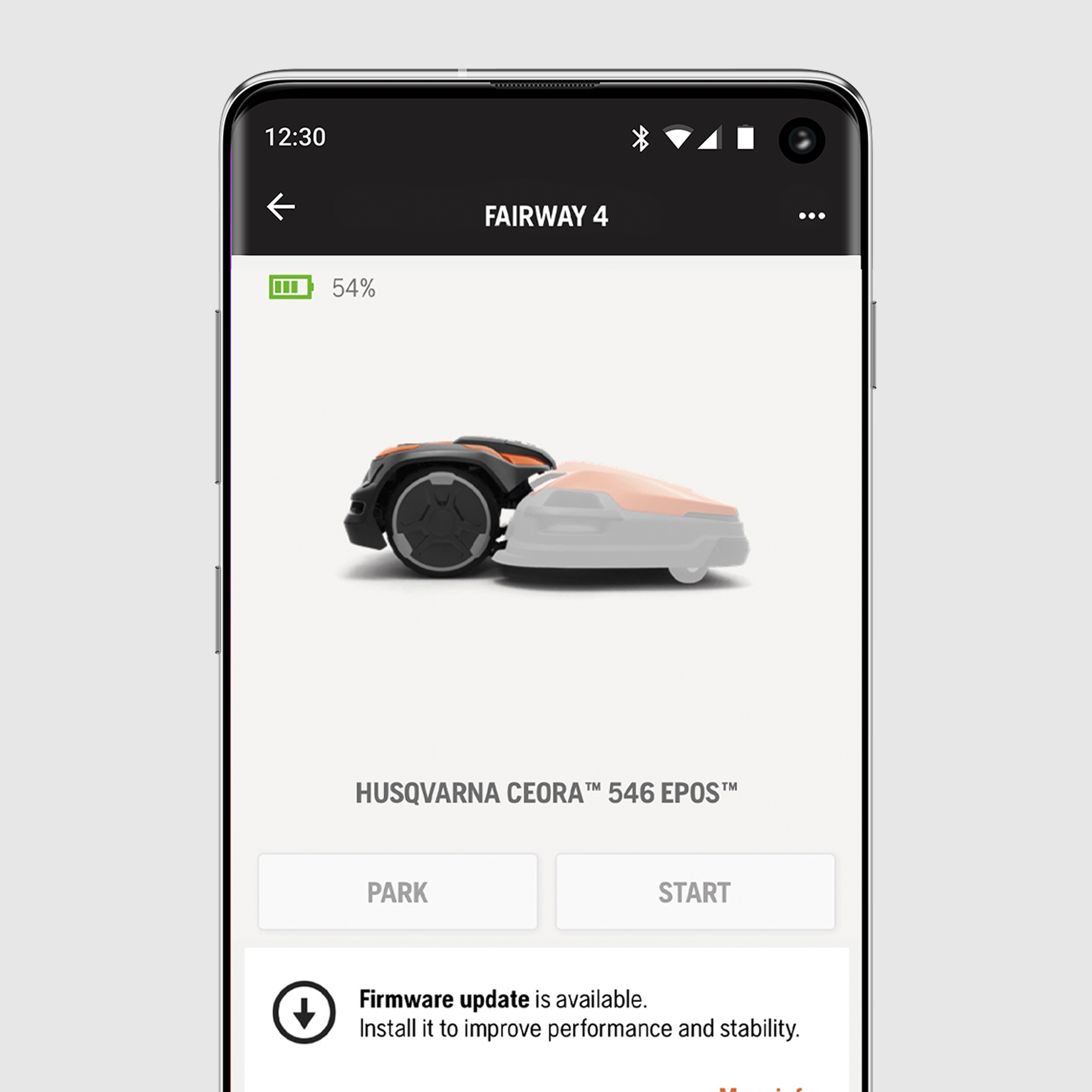

FOTA – Firmware Over-The-Air
FOTA – a technology that enables the operators to perform upgrades of the firmware, via the Fleet Services app. The downloading is done remotely, without the need of physical intervention into the product, and enables new features and updates.
-

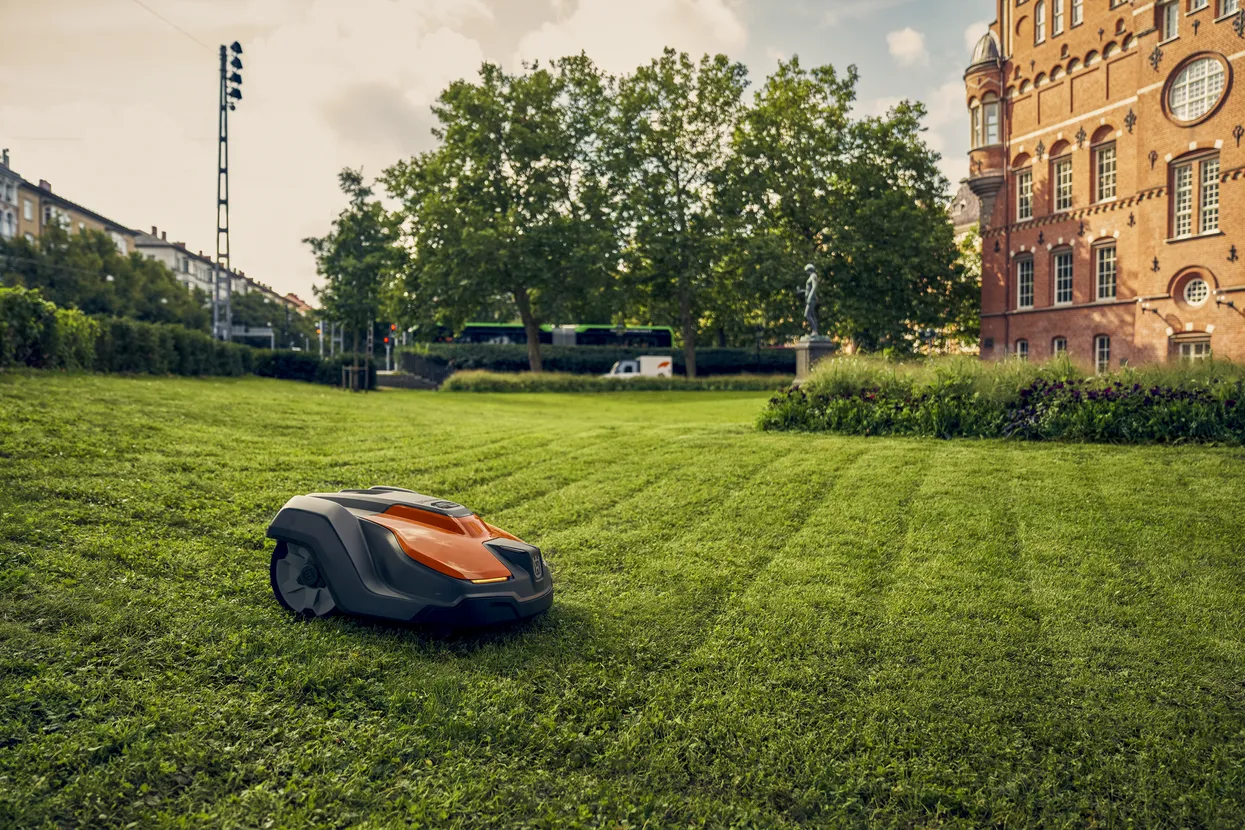

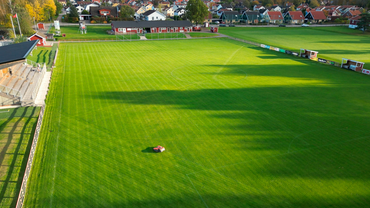

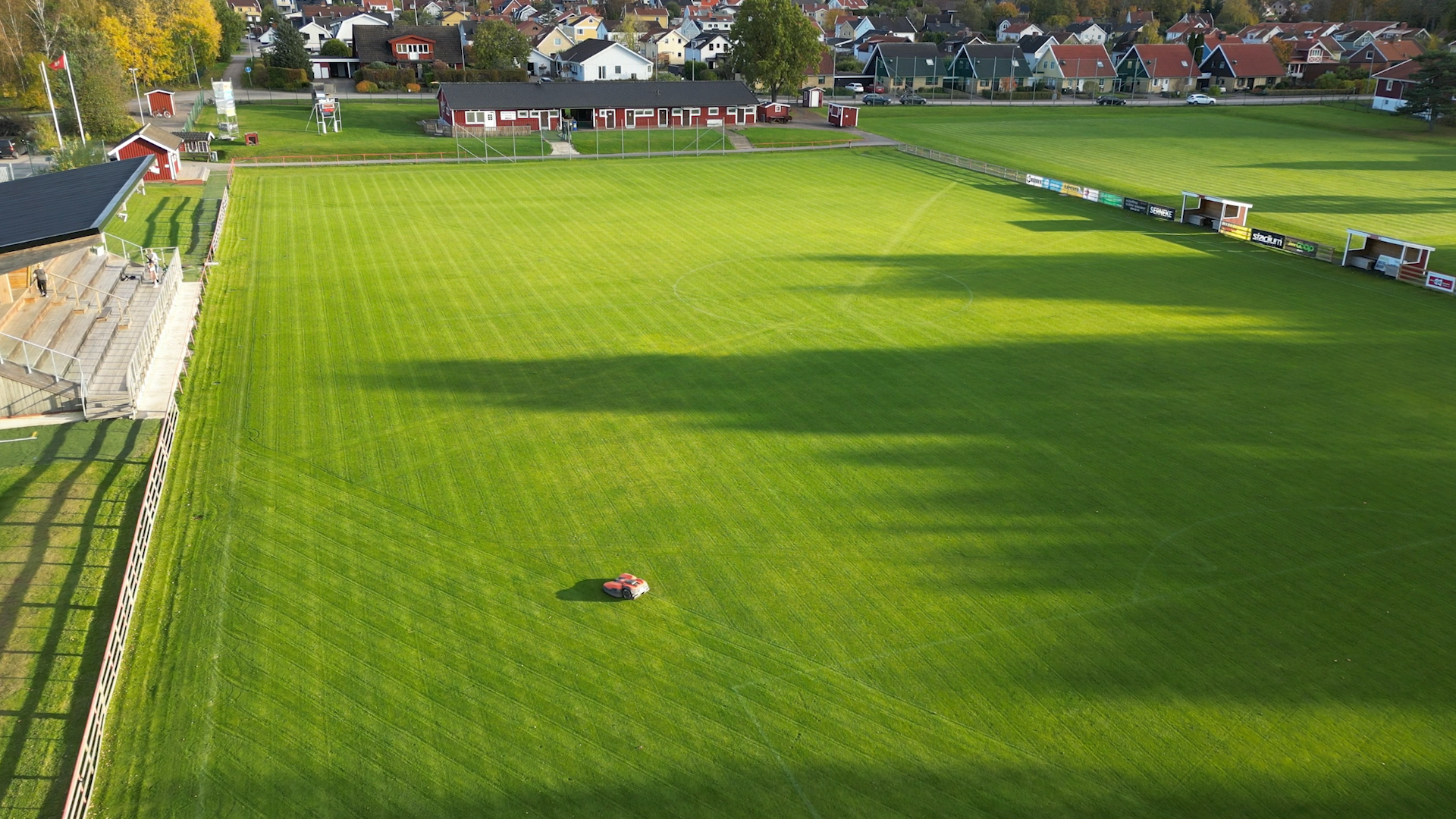

Selectable mowing pattern
Improve the visual impression of the turf by changing the mowing pattern. With EPOS® technology, the mower can run in parallel lines and create a variety of patterns, such as diamonds, triangles and checkerboard.
-

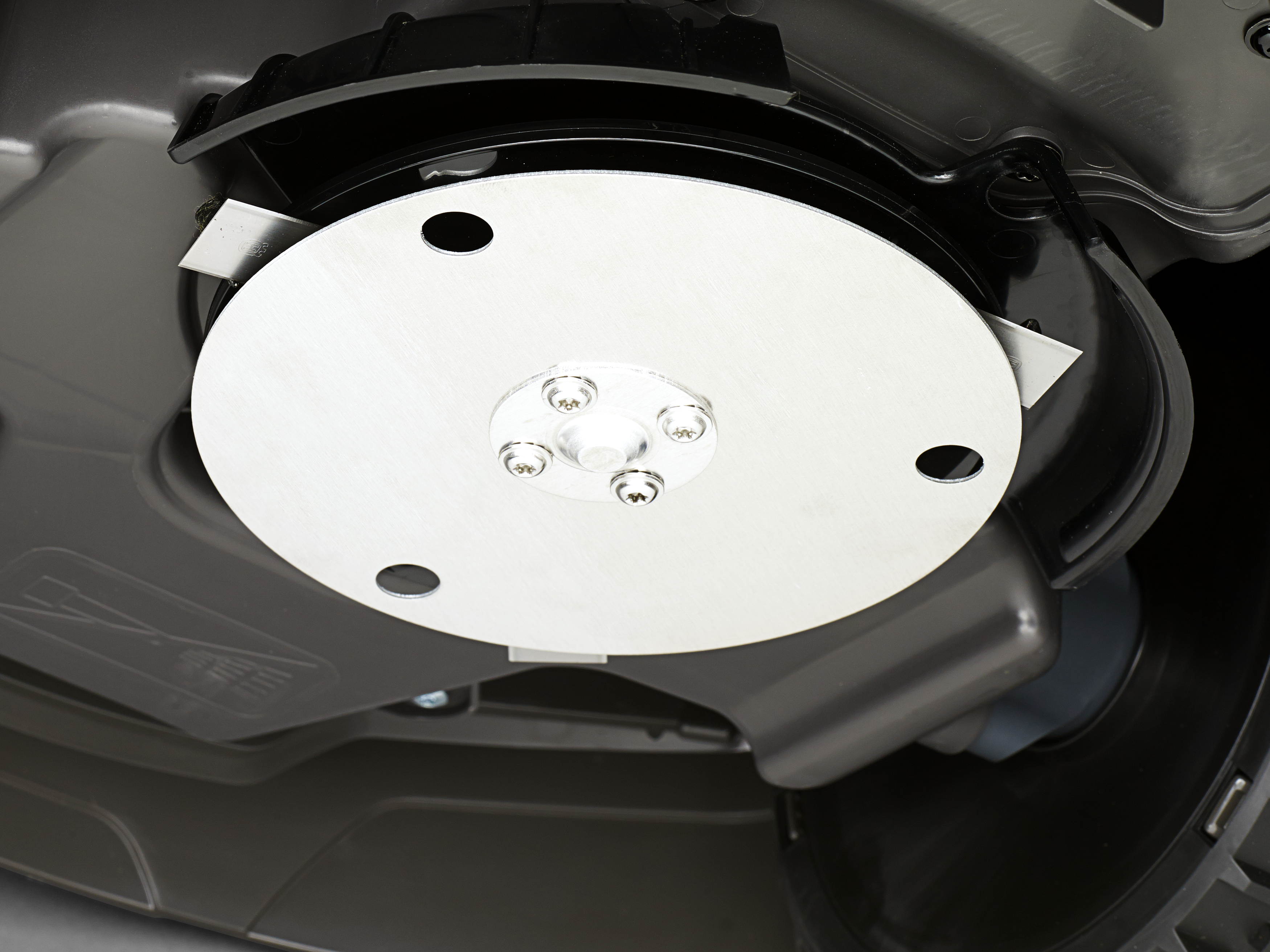

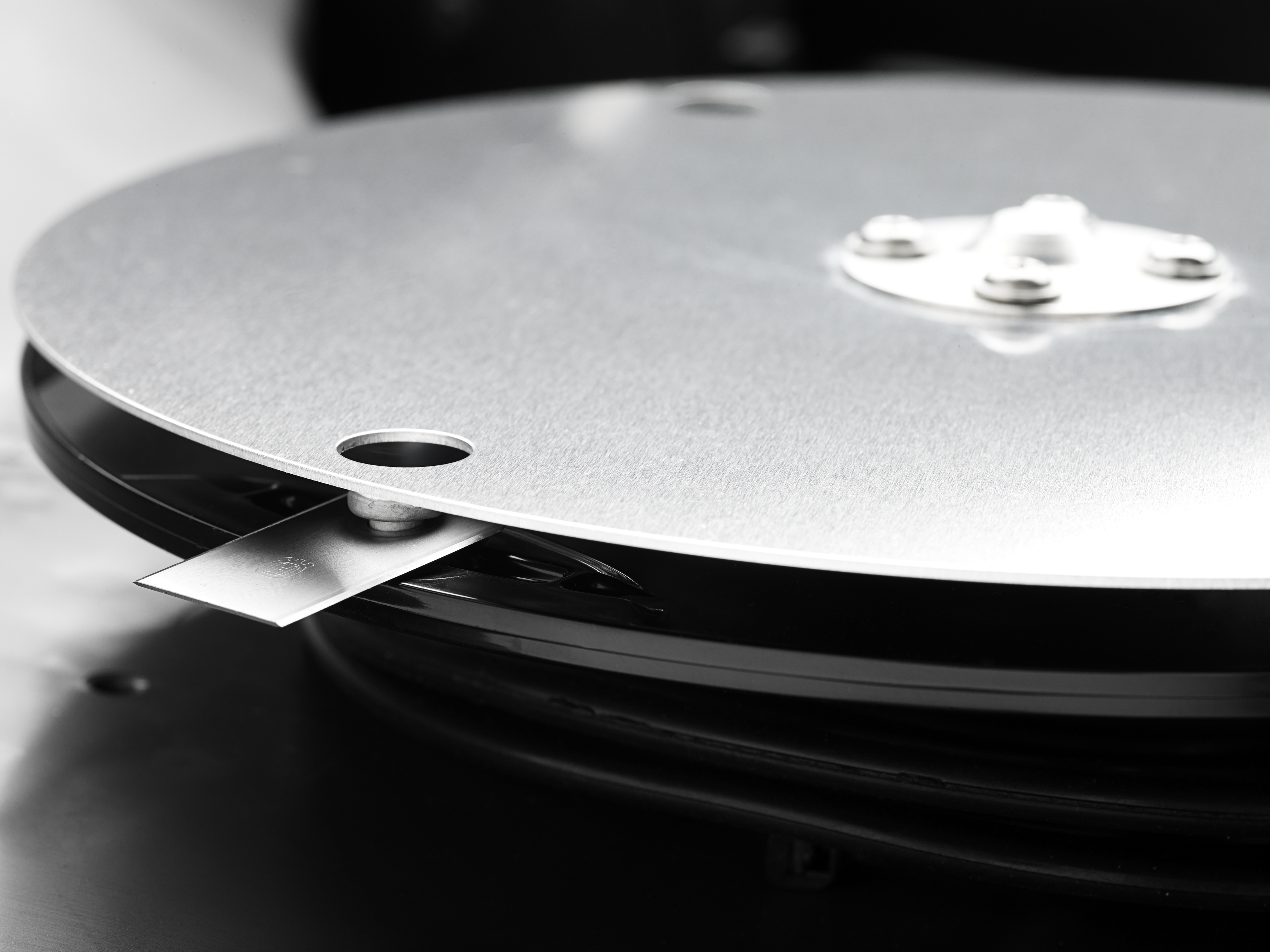

5 blade cutting disc
The cutting discs on the commercial models, Automower 500-series and CEORA, are equipped with 5 Enhance HSS blades, which gives a higher cutting performance. More blades per disc gives a finer cut and extends the interval for blade changes.
-
Silent
Thanks to its unique cutting system, Automower® is extremely quiet. It operates between 50-60 decibels which is quieter than your average conversation.
-
Electric height adjustment – PATENTED
Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app. The setting is also accessible from the mower’s main menu.
-

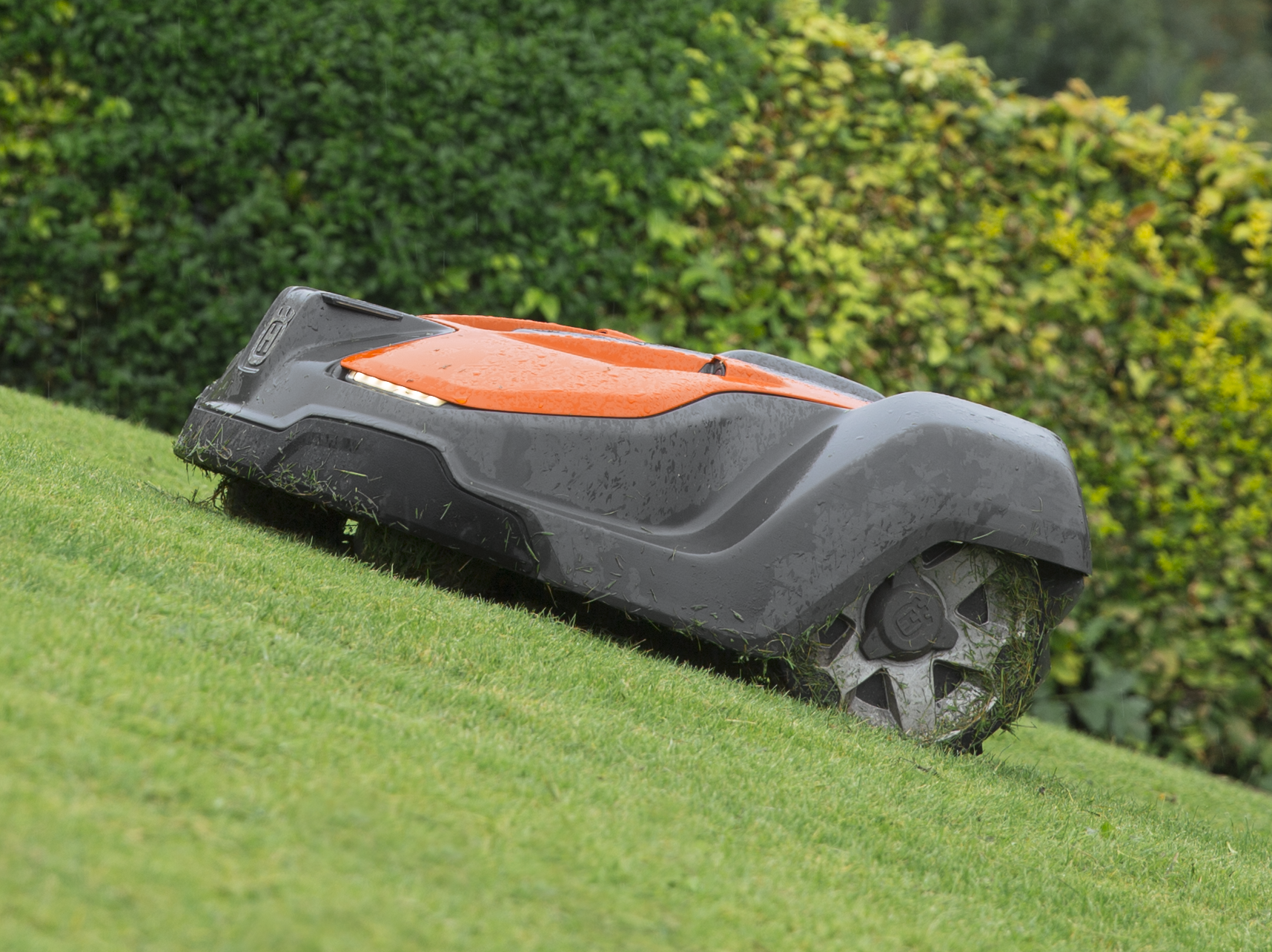

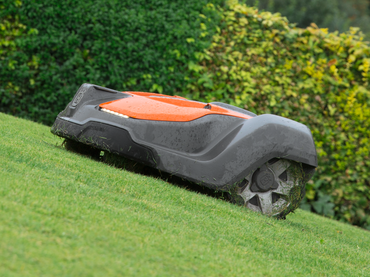

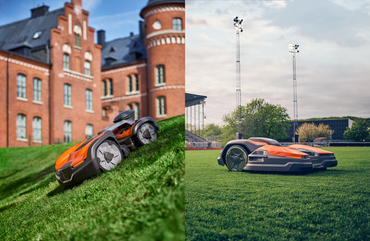

Manages slopes up to 45%
Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 45%.
-
Reliability
Robotic lawn mowing is all about reliability. Husqvarna has during 25 years of development refined its mower concept to achieve the highest level of reliability, quality and cutting result, with a minimum of assistance.
-

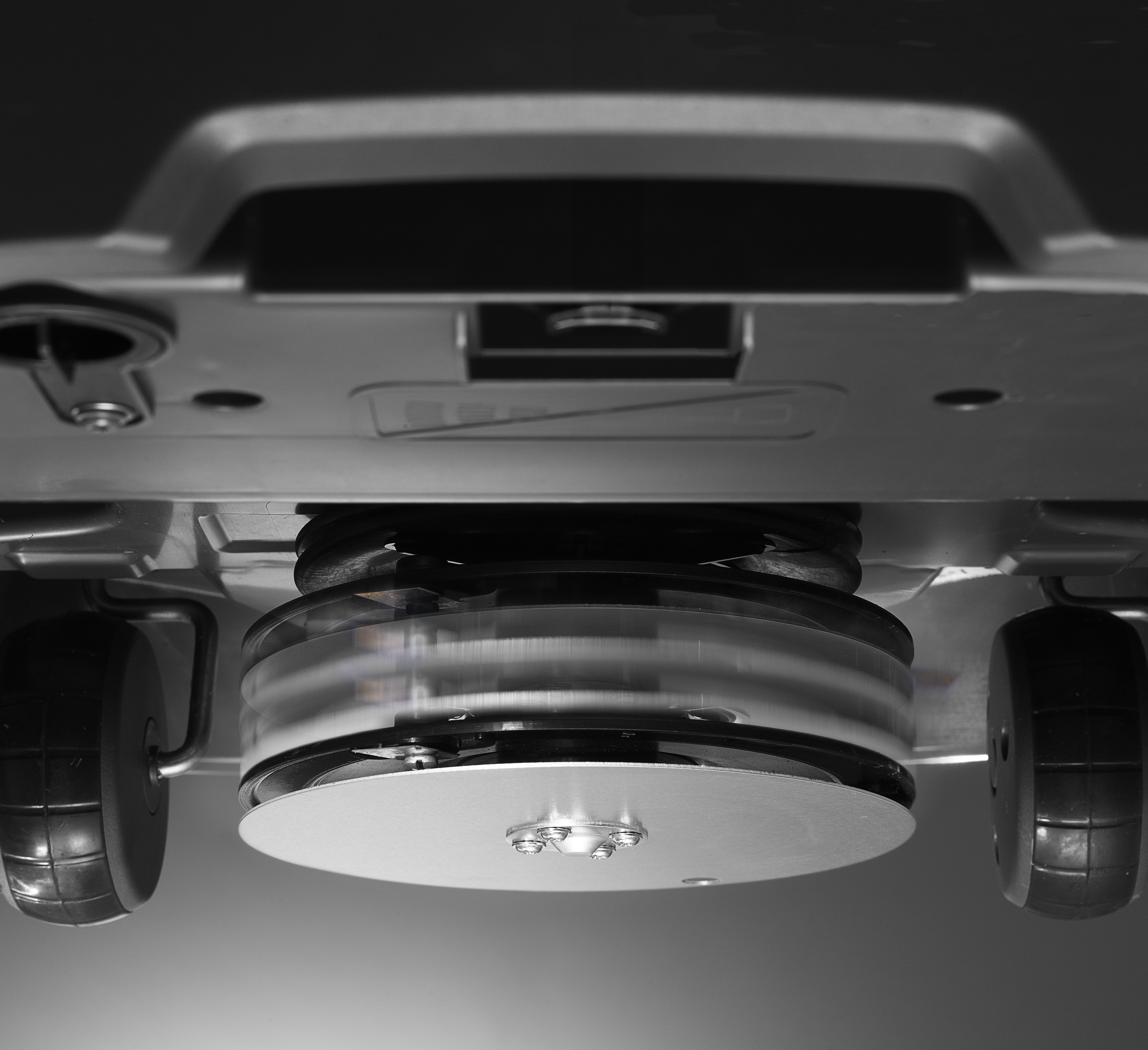

Unique Cutting System
Automower® is equipped with 3 razor-like blades made of carbon steel mounted on a robust cutting disc system. Automower® cuts a little grass at a time, but frequently. The tiny clippings are recycled into the turf as a natural fertilizer resulting in a healthier looking lawn.
-
Weather timer
Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximize its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on lawn and mower.
-

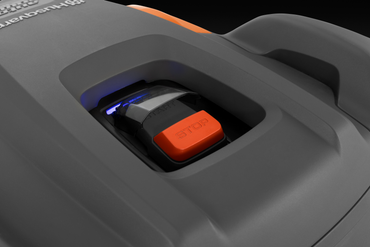

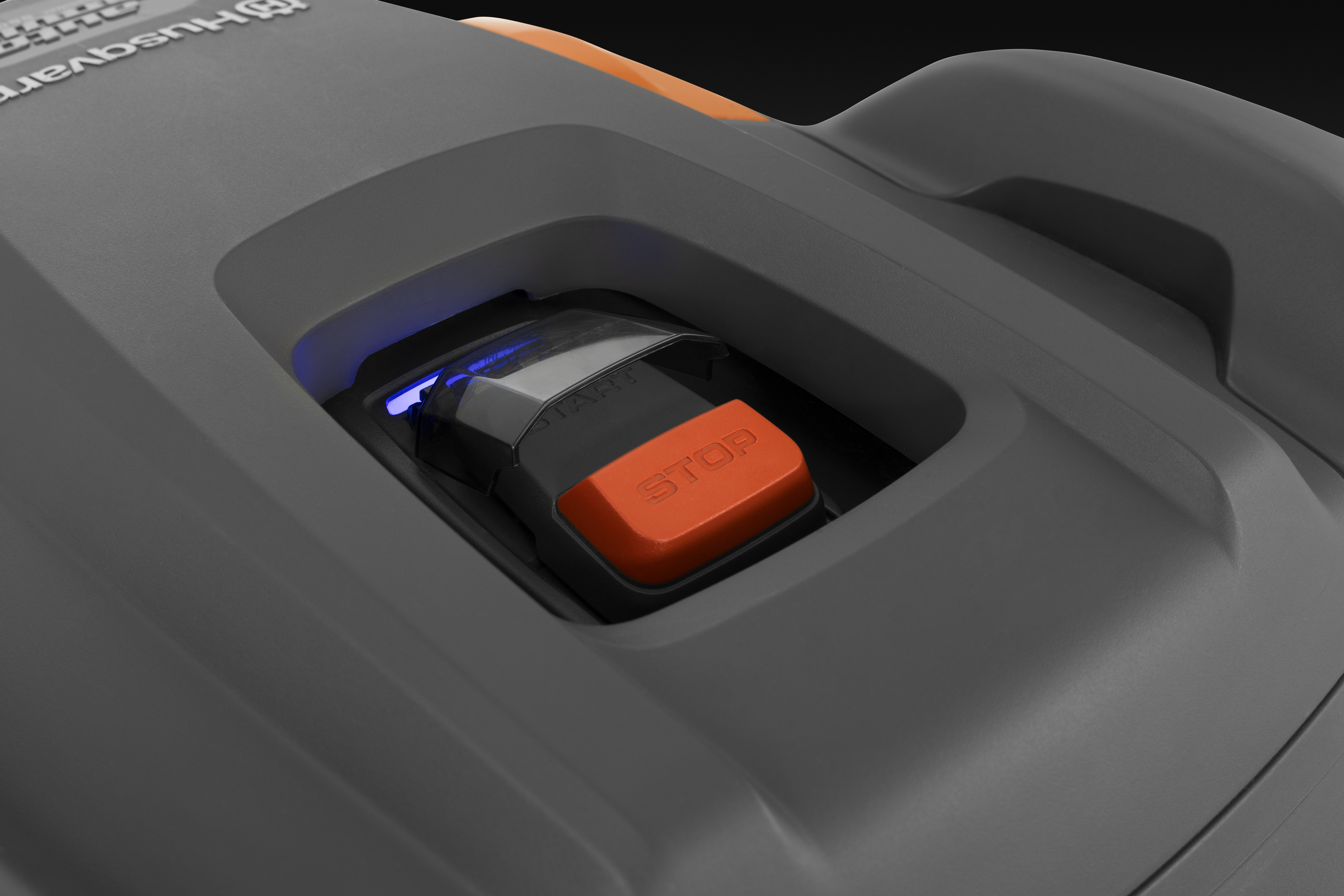

Pro user interface
Interface adapted for professional handling, meaning all settings and controls managed remotely through Husqvarna Fleet Services smartphone app or via PC/tablet. Controls on product; status LED indication and START / STOP functionality. Simplifies use for inexperienced users and minimizes serious impact on the product in case of vandalism.
-
Automatic charging
When Automower® needs more power, it finds its own way back to the charging station.
-

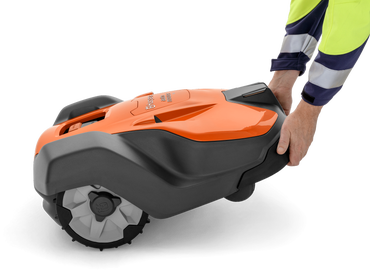

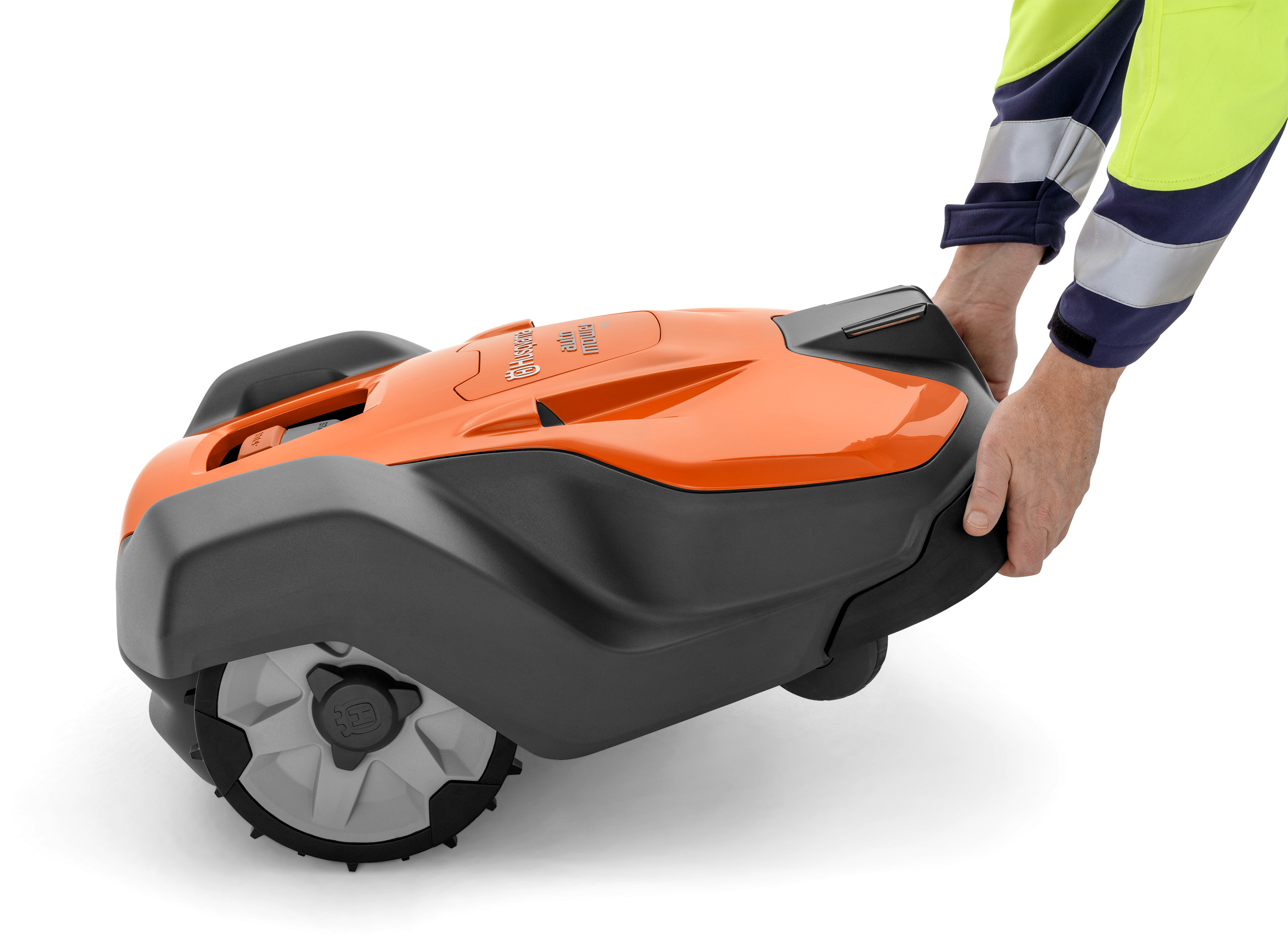

Built-in Theft Protection
To reduce risk of theft, an alarm sounds if the mower is lifted and can only be deactivated with your unique PIN code.
-
Built-in Theft Protection
To reduce risk of theft, an alarm sounds if the mower is lifted and can only be deactivated with your unique PIN code. Additionally, GPS enabled tracking allows you to view your mower’s location at all times.
-
Balance control
Automatically detects and notifies if imbalance in the cutting system occur to ensure trouble-free and silent operation. Imbalance could be caused by missing, double mounted or damaged blades.
-

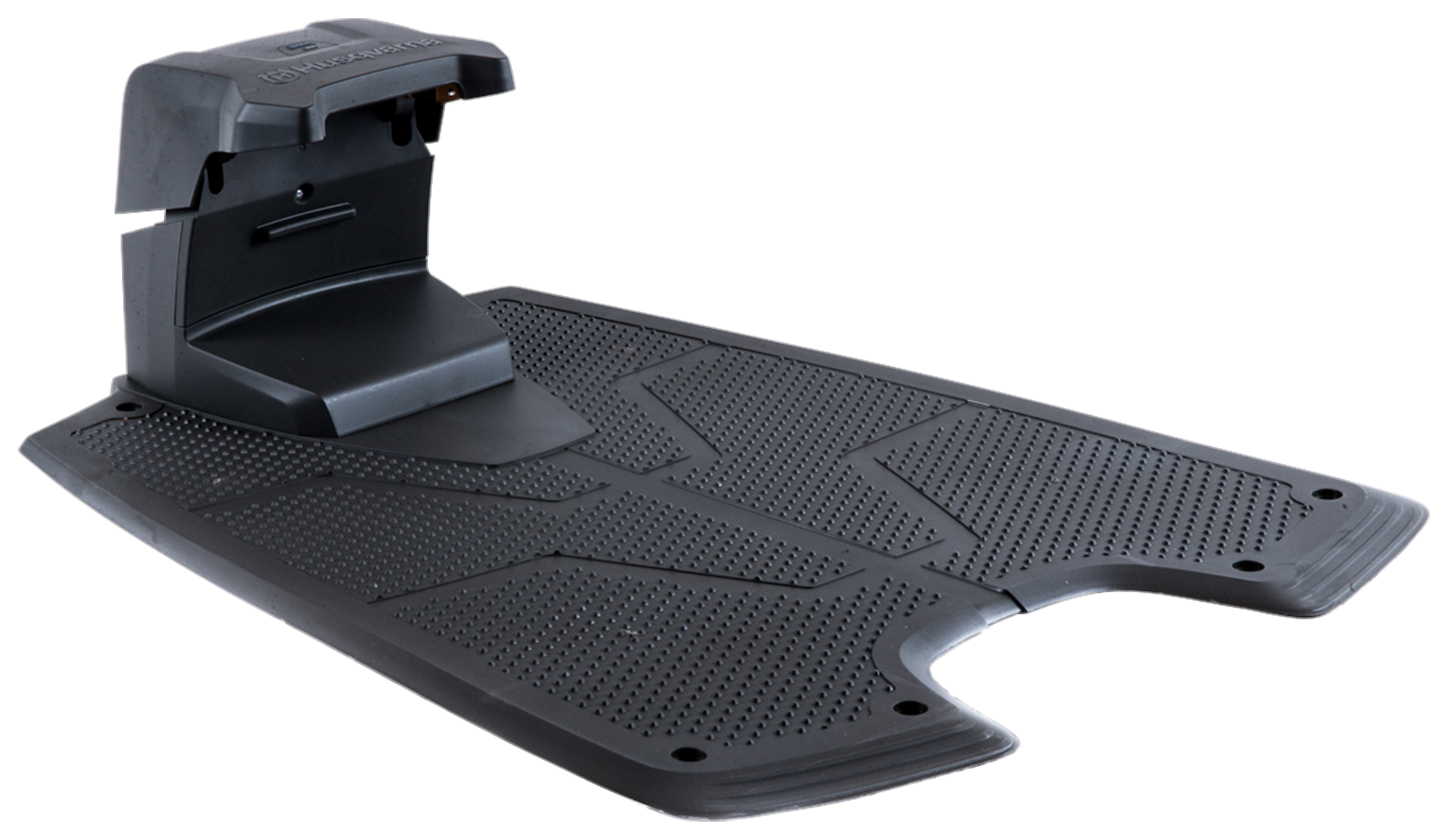

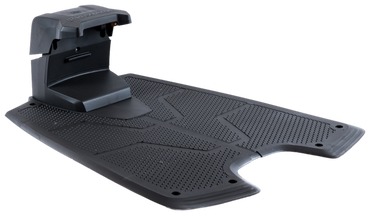

Flexible charging station placement
Enables flexible placement of the charging station in the garden which simplifies the installation and secures reliable docking every time.
-
Front bumper
Rubber-made front bumper makes the mower more resistant to recurrent collisions with trees, shrubs and other objects within the installation.
-
Scheduling
With the easily programmable weekly timer function, it is possible to precisely schedule time intervals for Automower® to work.
-
Husqvarna EPOS Technology
Virtual boundaries through satellite based technology with an accuracy down to 2-3 cm. No physical wires means new level of robustness and flexibility with unmatched possibilities when programming. Makes it possible to define several work areas with different timers and settings. Like to create temporary stay-out zones and pre-set transport paths for a more flexible placement of the charging station.
-
EPOS® guidance
Automatically calculates the most efficient route to and from the charging station’s docking point. It will vary its route on the lawn to avoid unpleasant tracks.
-

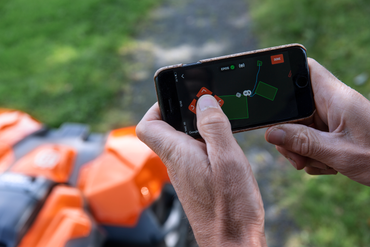

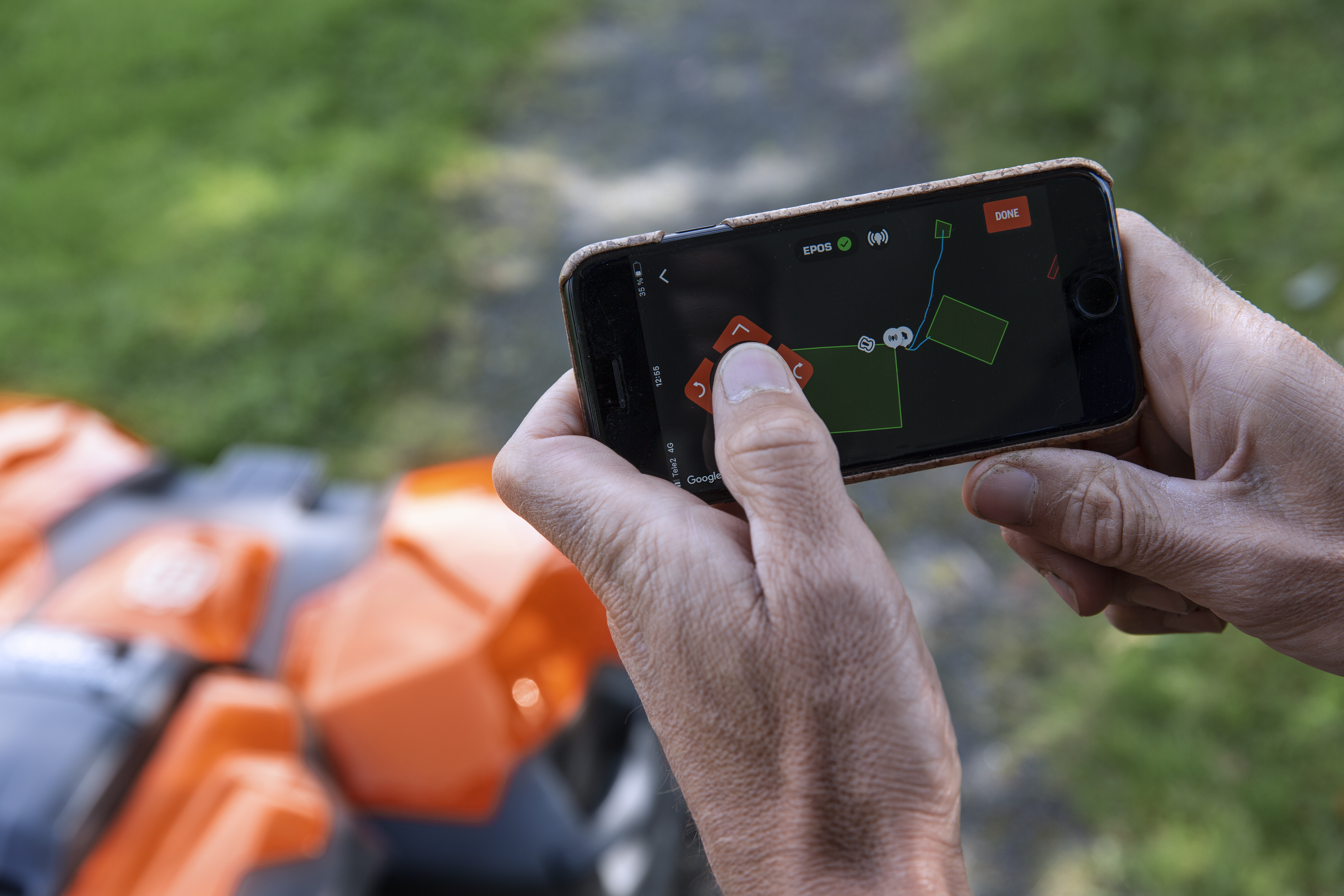

appDrive – driving by remote
Make the product easy to steer by using a smart phone. Use appDrive when defining an EPOS map, or when driving the product between areas without need of carrying.
-

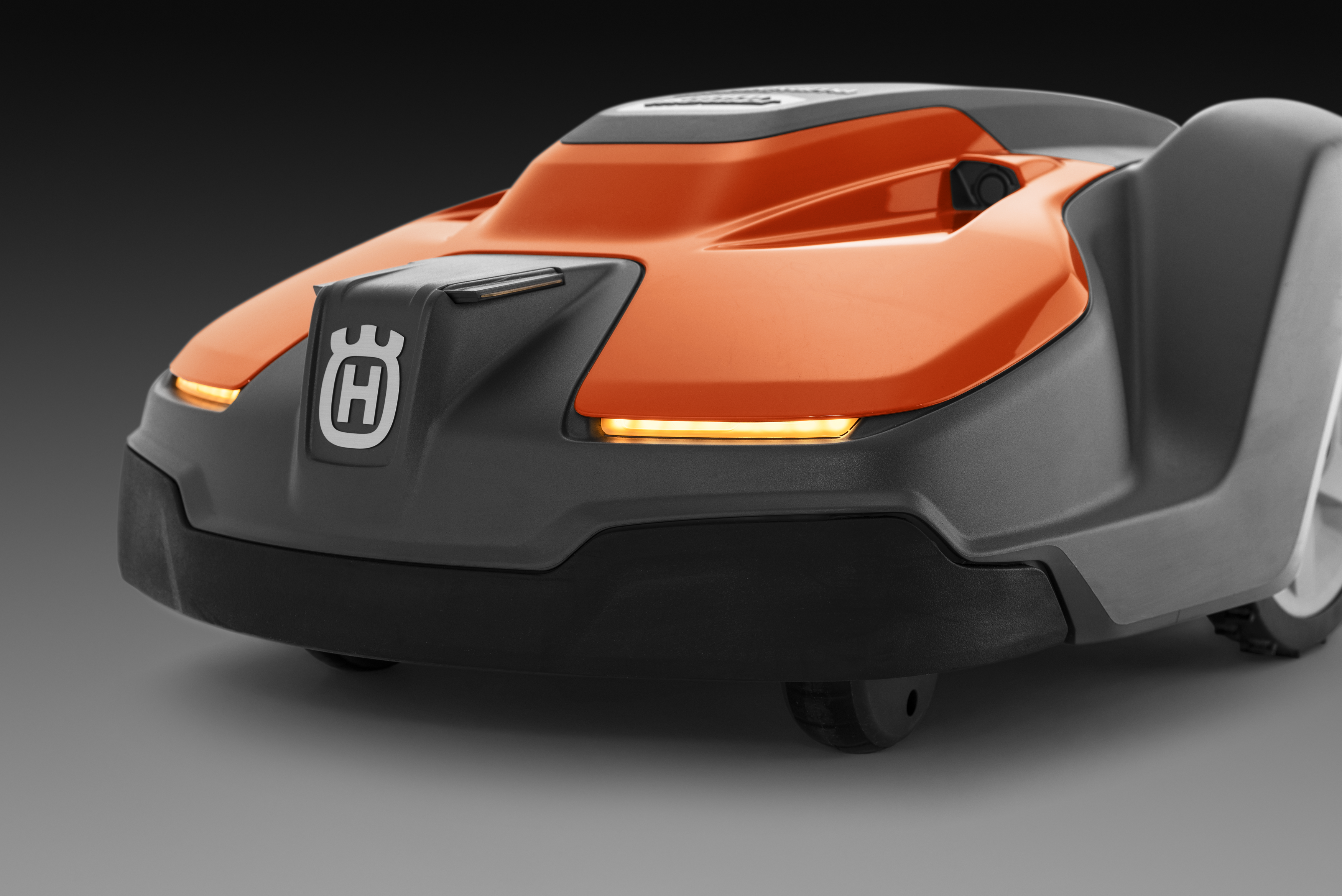

Warning lights
Warning lights with pulsating or solid light to create awareness during operation at night. Reduces the risk of accidents in public work environments.
-

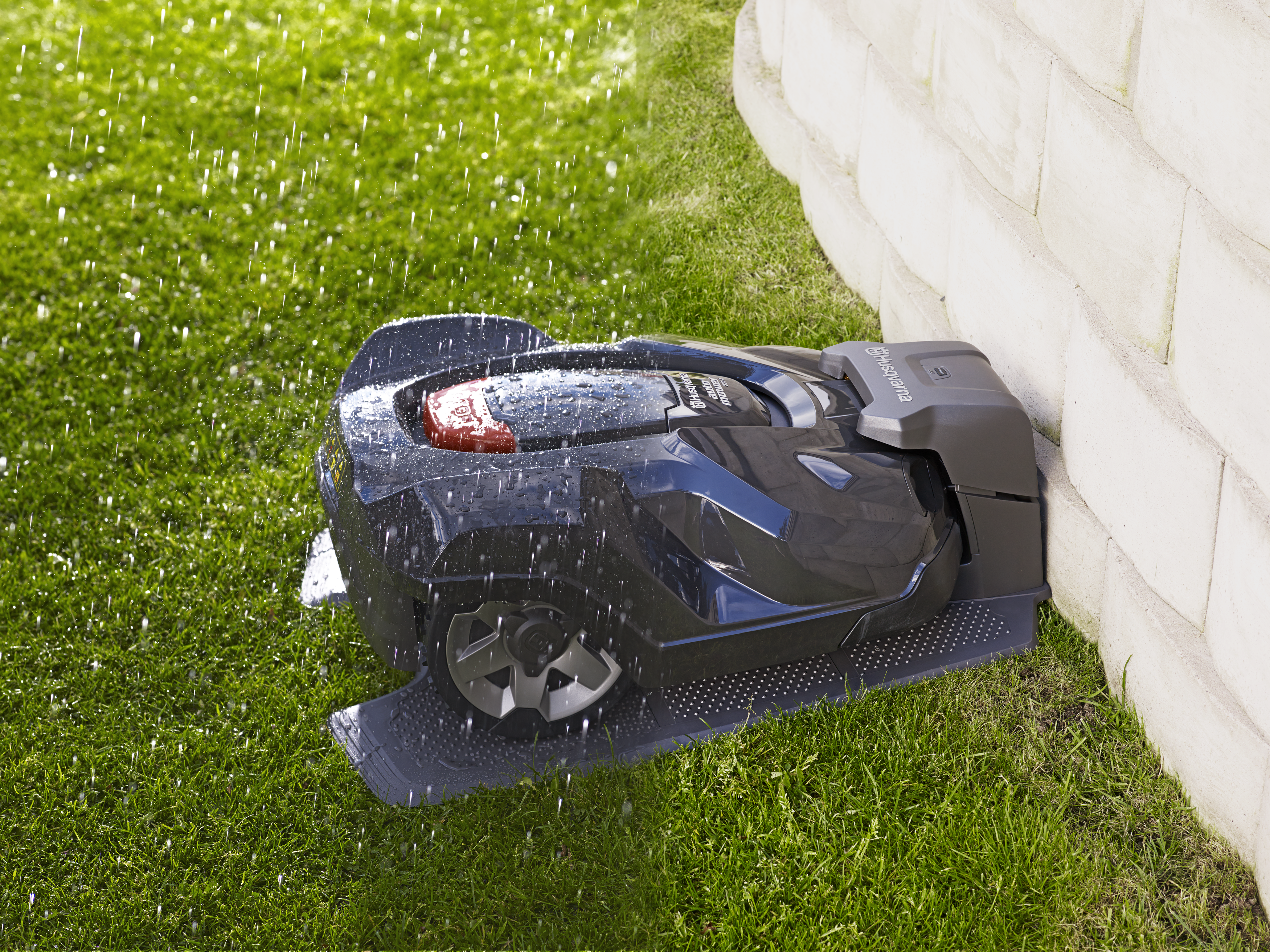

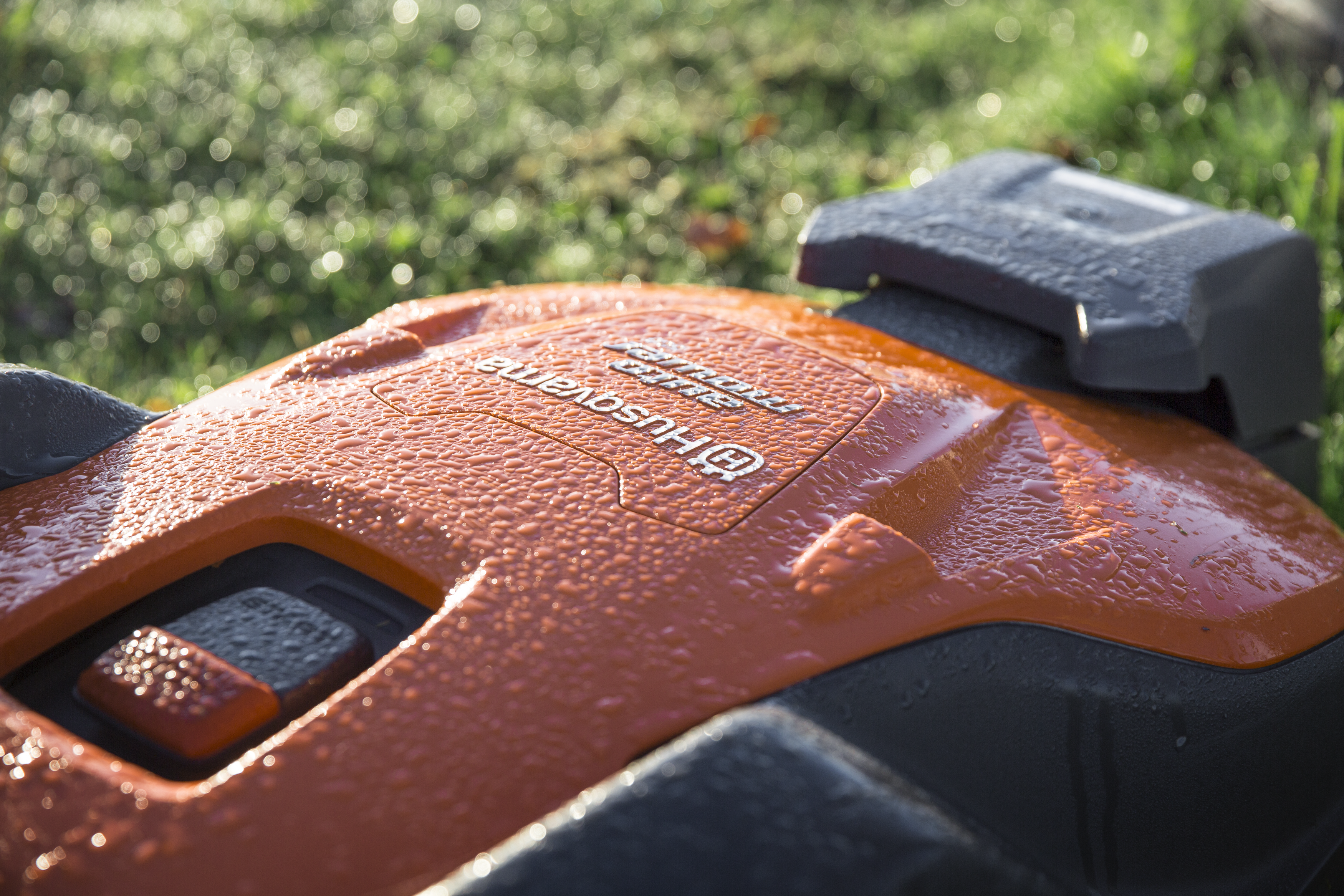

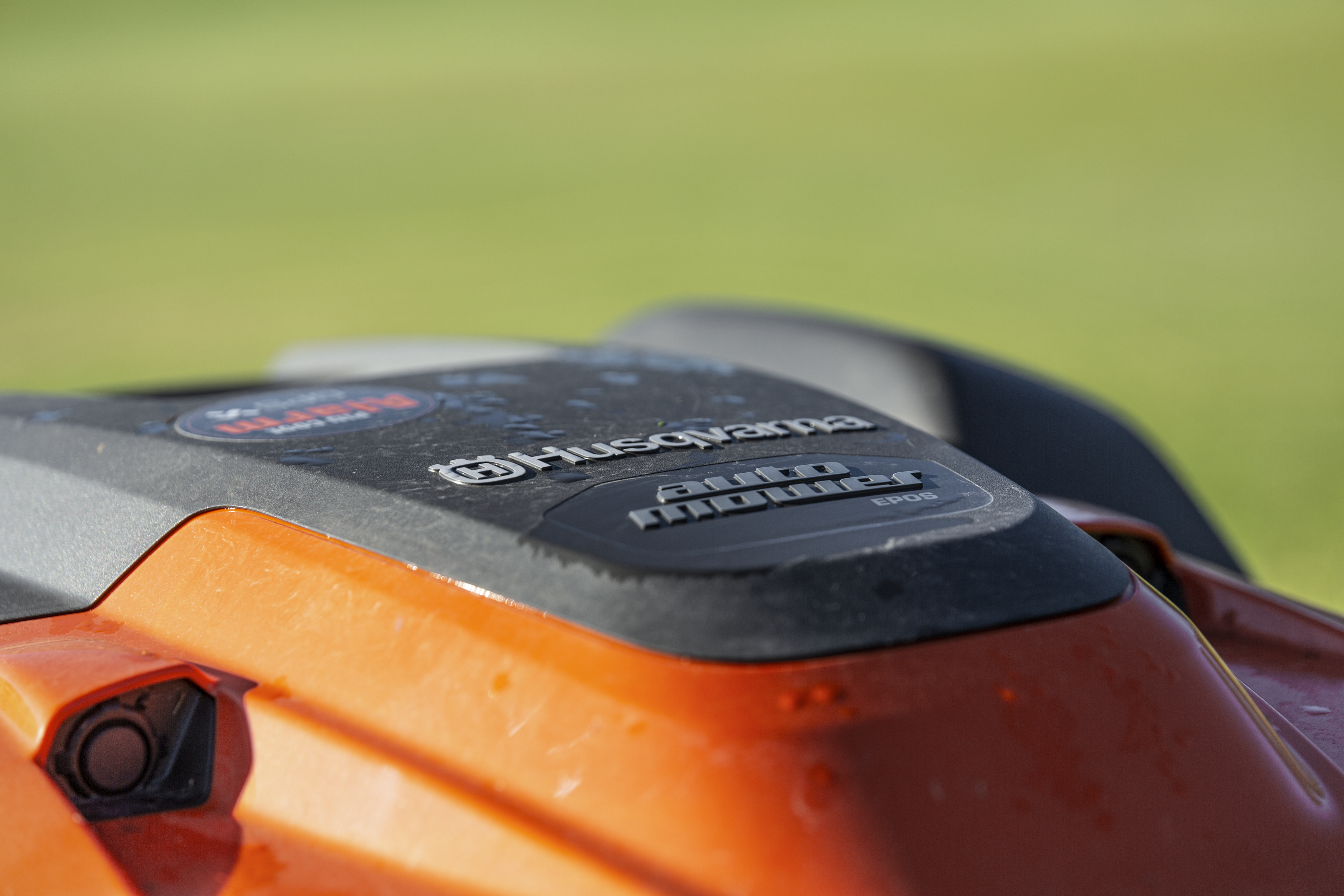

Weather Resilient
Automower® is water resistant and can mow the lawn even when it is raining. On some mowers, you can use the weather timer setting to adjust mowing frequency based on rate of grass growth. During periods of strong growth the mower will cut more frequently, and during periods of slow growth (i.e. dry or late season) the mower will spend less time mowing.
-

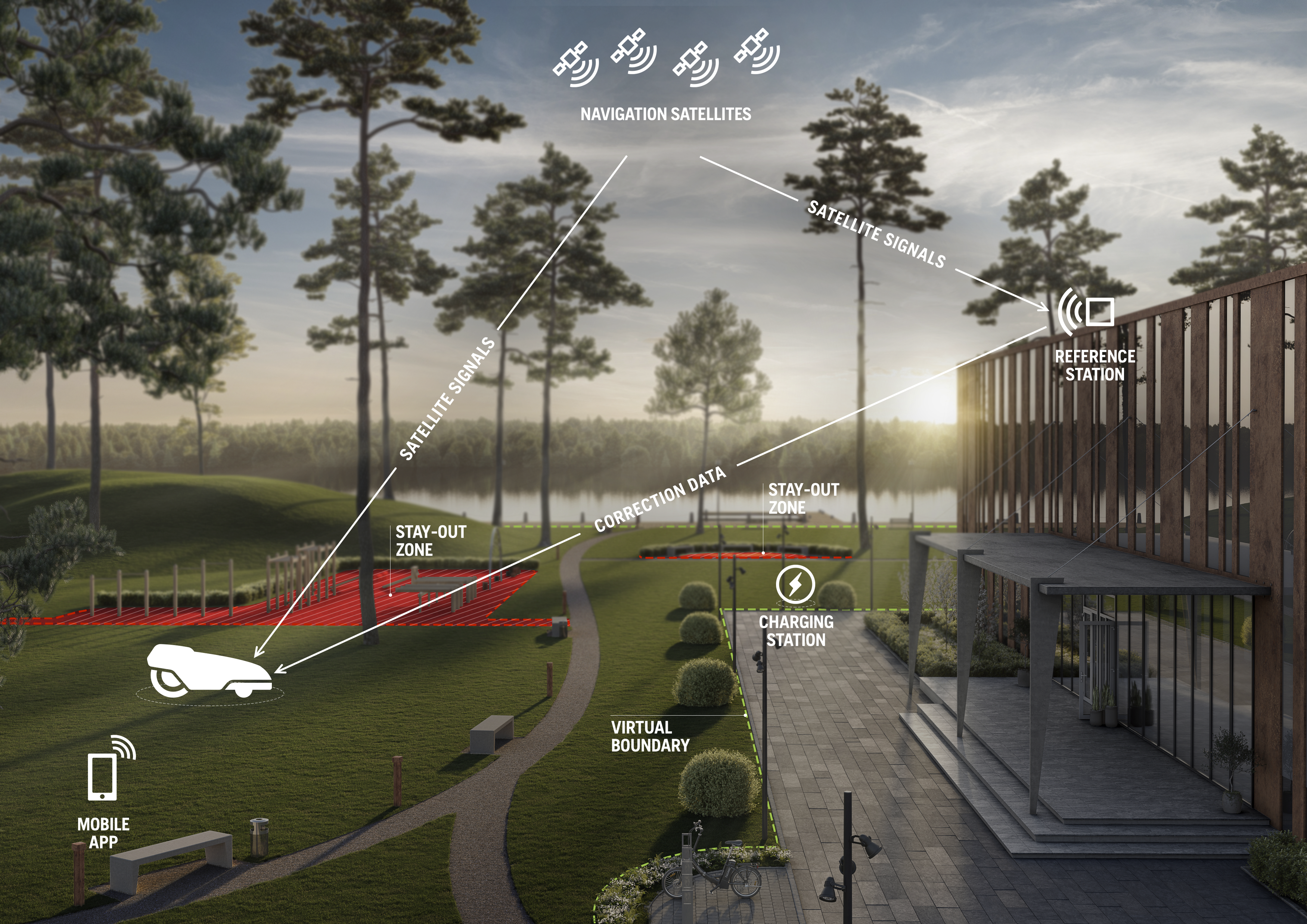

Husqvarna EPOS® wire-free Technology
Virtual, wire-free operation through satellite based RTK-GNSS technology, enables an accuracy down to approximately 2cm. The absence of physical wires implies a new level of robustness and flexibility, permitting regular deep aeration and turf repair without jeopardizing the function of the robot installation.
-

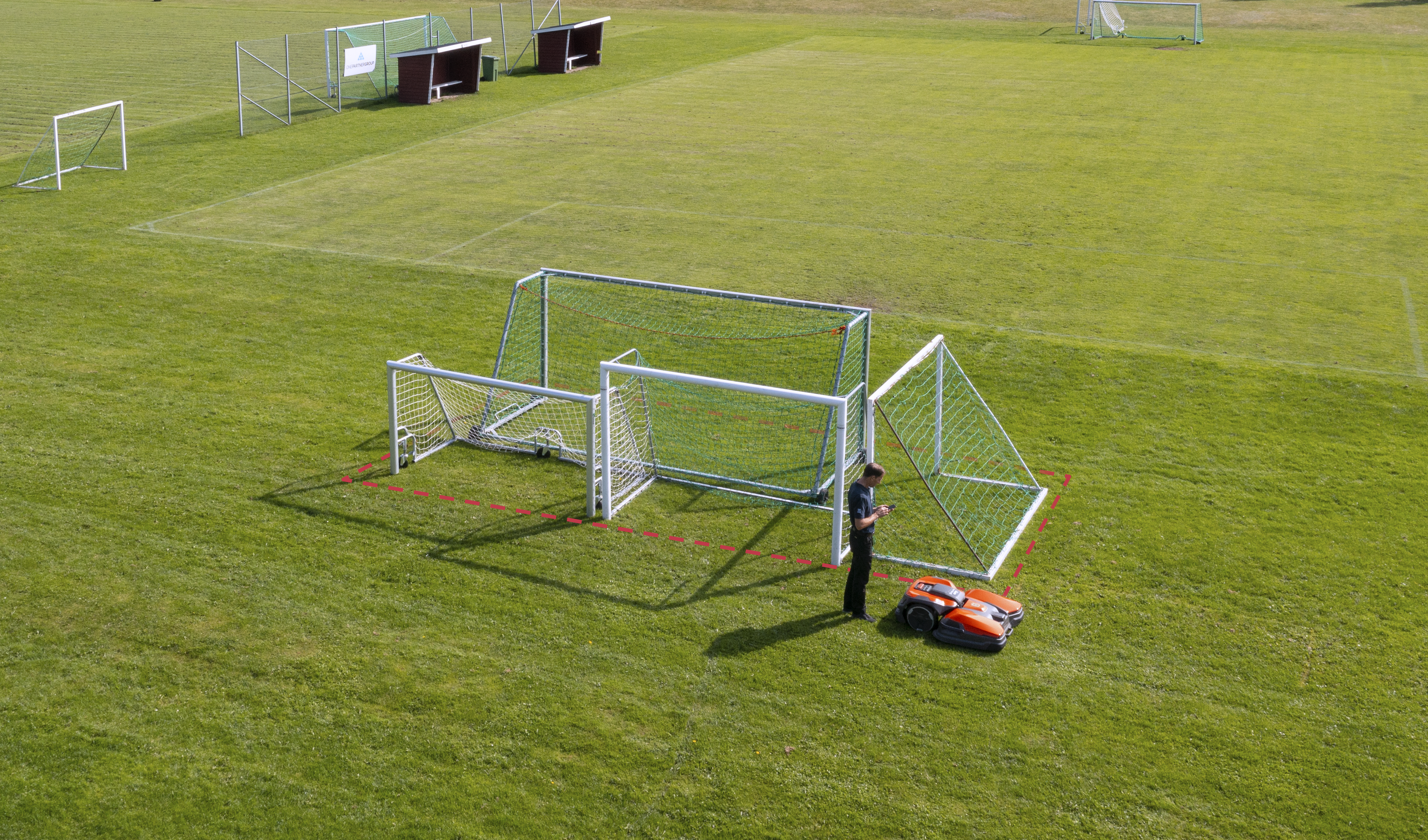

Temporary stay-out zones
When the need arises, create temporary stay-out zones in your robot installation. Activates or deactivates quick and easy through the mobile app. Practically useful if part of the surface area needs to be restricted for a temporary construction work, seeding or during events.
-
Customized work areas
The fully connected product provides an opportunity to individually customize each work area with a unique time schedule, cutting height and cutting pattern. Provides tailored care for a site with multiple scattered areas.
-
Maintenance point
Designate and mark a machine maintenance parking spot on the map. On command, the product parks there automatically while waiting for service, cleaning, loading or storage.
-
appDrive – operate by remote
Seize the opportunity to operate the product using a remote control via the appDrive feature on your smartphone. The handling is easy and user-friendly, sparing you from strenuous, unnecessary lifting when the product needs to be moved between workspaces, to the service facility, or during installation.
-

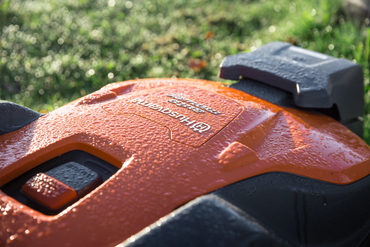

Weatherproof design
Husqvarna’s robotic products are built with 30 years of experience in harsh weather types, such as the Nordic climate. They are designed to operate 24/7 throughout the grass growing season, with normal maintenance and cleaning. The unique cutting system, with free-hanging razor blades on a cutting disc, ensures the cutting result even in rainy conditions.
Specifications
Capacity |
EPOS wirefree technology
SKU: 970 71 79‑05
|
Area capacity | 5,000 m² |
---|---|
Boundary type | Virtual wire |
Maximum slope performance at boundary | 15 % |
Maximum slope performance inside installation | 45 % |
Max active time | 24 h |
Follow guide | Virtual transport path |
Charging system | Automatic |
Overall dimensions | |
Weight (complete product w/o side packed articles) | 15.1 kg |
Product size length | 75 cm |
Product size width | 63 cm |
Product size height | 35 cm |
Product data | |
Colour | Orange |
Sound level perceived | 62 dB(A) |
Protection Index (IP Code) | IPX4 |
Battery type | Li-Ion |
Battery capacity | 5 Ah |
Charging current | 2.2 A |
Typical mow time on one charge | 75 min |
Typical charging time | 65 min |
Mean energy consumption per month at maximum use | 14 kWh |
Area capacity – Standard 48 | 5,000 m² |
Area capacity – Sports 24 | 2,500 m² |
Area capacity – Max 72 | 7,500 m² |
Area capacity per hour without charging | 175 m² |
Cutting System | |
Cutting system | 5 pivoting razor blades |
Cutting height max | 60 mm |
Cutting height min | 20 mm |
Cutting width | 24 cm |
Cutting height adjustment | Electric |
Skid plate | Yes |
Dual cutting direction | Yes |
Control | |
User Interface | Professional User Interface/App |
Display | None |
Connectivity | Bluetooth®, Cellular |
App controlled | Husqvarna Fleet Services |
Smart Home integration | Yes |
Firmware Update | FOTA |
Safety | |
GPS Theft tracking | Yes |
GeoFence | Yes |
PIN code | Yes |
Alarm | High |
Lift sensor | Yes |
Tilt sensor | Yes |
Object detection | No |
