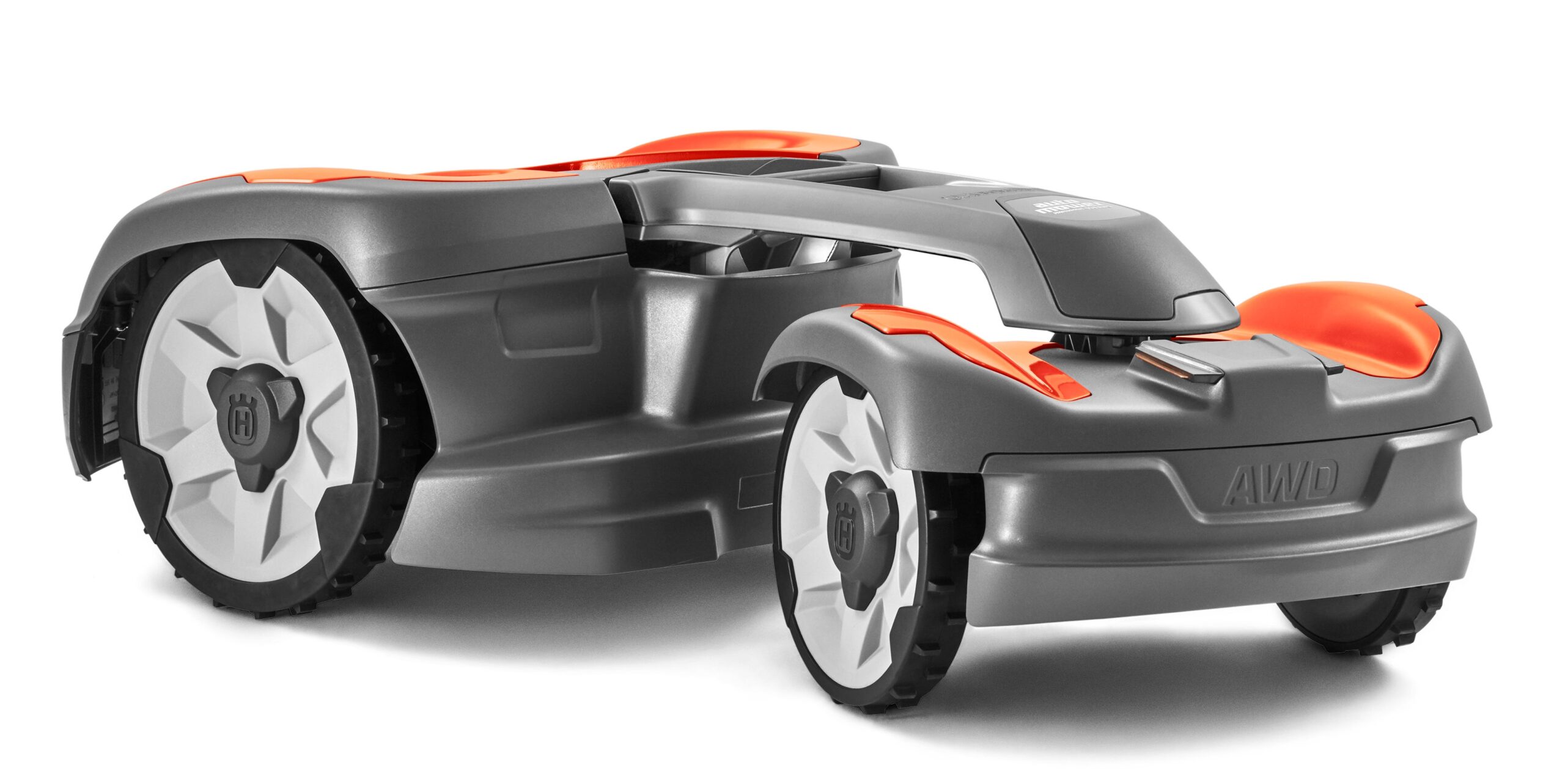

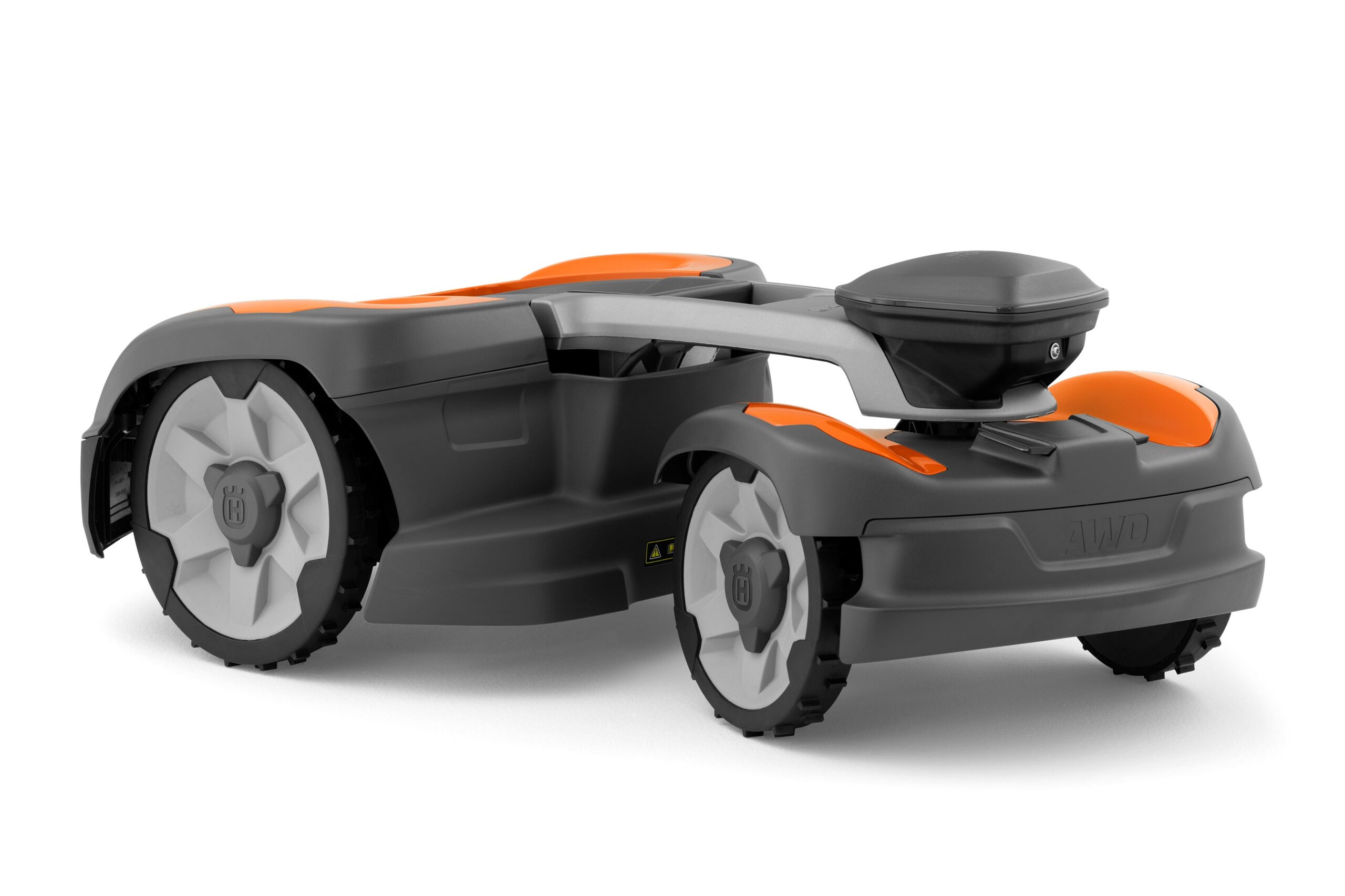

Husqvarna Automower 535 AWD Robotic Mower with EPOS 1.2 Acre (970745505)

Description

Overview

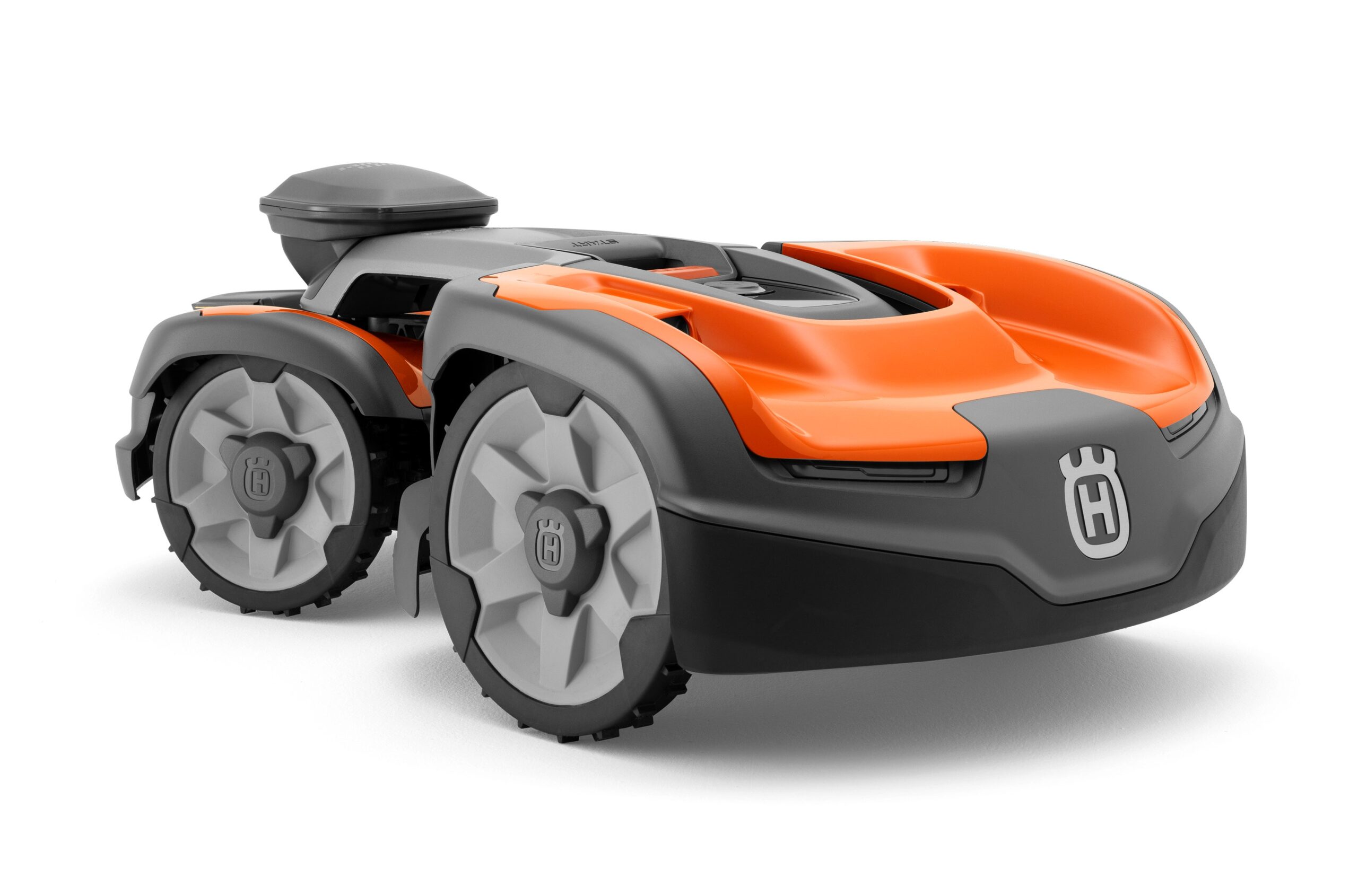

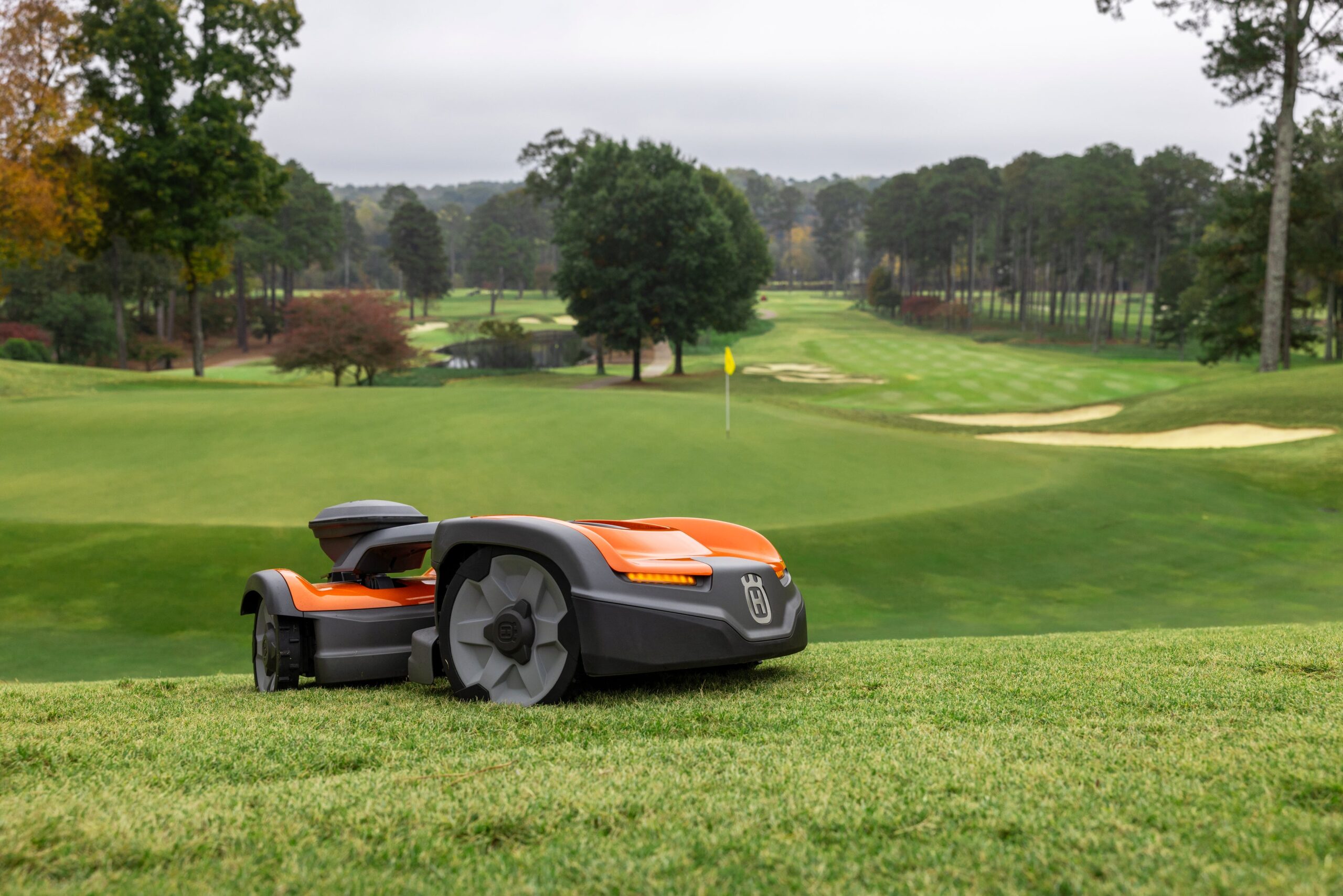

Husqvarna Automower® 535 AWD EPOS® is a highly effective robotic mower with all-wheel-drive, developed for the most challenging areas within commercial turf care. The satellite-based Husqvarna EPOS® technology enables wire free installation, reducing downtime and allowing you to customise different work areas and set temporary stay-out zones. Thanks to the AWD system, the mower efficiently handles obstacles, tough terrain, and slopes with up to 70% (35˚) incline. Adapted for corporate and municipal estates, it offers easy interaction and supervision through Husqvarna Fleet Services™. EPOS® RS5 Reference Station is required.

Features

• 1.2 Acre Cutting Range (5,000 square meters)
• Minimum Cutting Height 1.2 Inches
• Max Cutting Height 2.75 Inches
• Cutting Width 8.7 Inches
• 8.0 AH Lithium Ion Battery
• Maximum Slope Performance 70%
• Virtual Boundary with Support by Wire Available
• Automower Connect App Controlled

• AIM Technology

  Husqvarna AIM Technology uses onboard GPS and sensors to create a virtual map of the installed area. The map is visible in Automower® Connect, and includes the location of boundary and guide wires. With AIM Technology via the app it is easy to create work areas with unique cutting heights and schedules, or temporary stay-out zones when needed.



• Husqvarna Fleet Services™

  Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere. Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations.



• FOTA – Firmware Over-The-Air

  FOTA – a technology that enables the operators to perform upgrades of the firmware, via the Fleet Services app. The downloading is done remotely, without the need of physical intervention into the product, and enables new features and updates.



• Selectable mowing pattern

  Improve the visual impression of the turf by changing the mowing pattern. With EPOS® technology, the mower can run in parallel lines and create a variety of patterns, such as diamonds, triangles and checkerboard.



• Electric height adjustment – PATENTED

  Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app. The setting is also accessible from the mower’s main menu.



• Unique Cutting System

  Automower® is equipped with 3 razor-like blades made of carbon steel mounted on a robust cutting disc system. Automower® cuts a little grass at a time, but frequently. The tiny clippings are recycled into the turf as a natural fertilizer resulting in a healthier looking lawn.



• Weather timer

  Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximize its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on lawn and mower.



• Pro user interface

  Interface adapted for professional handling, meaning all settings and controls managed remotely through Husqvarna Fleet Services smartphone app or via PC/tablet. Controls on product; status LED indication and START / STOP functionality. Simplifies use for inexperienced users and minimizes serious impact on the product in case of vandalism.

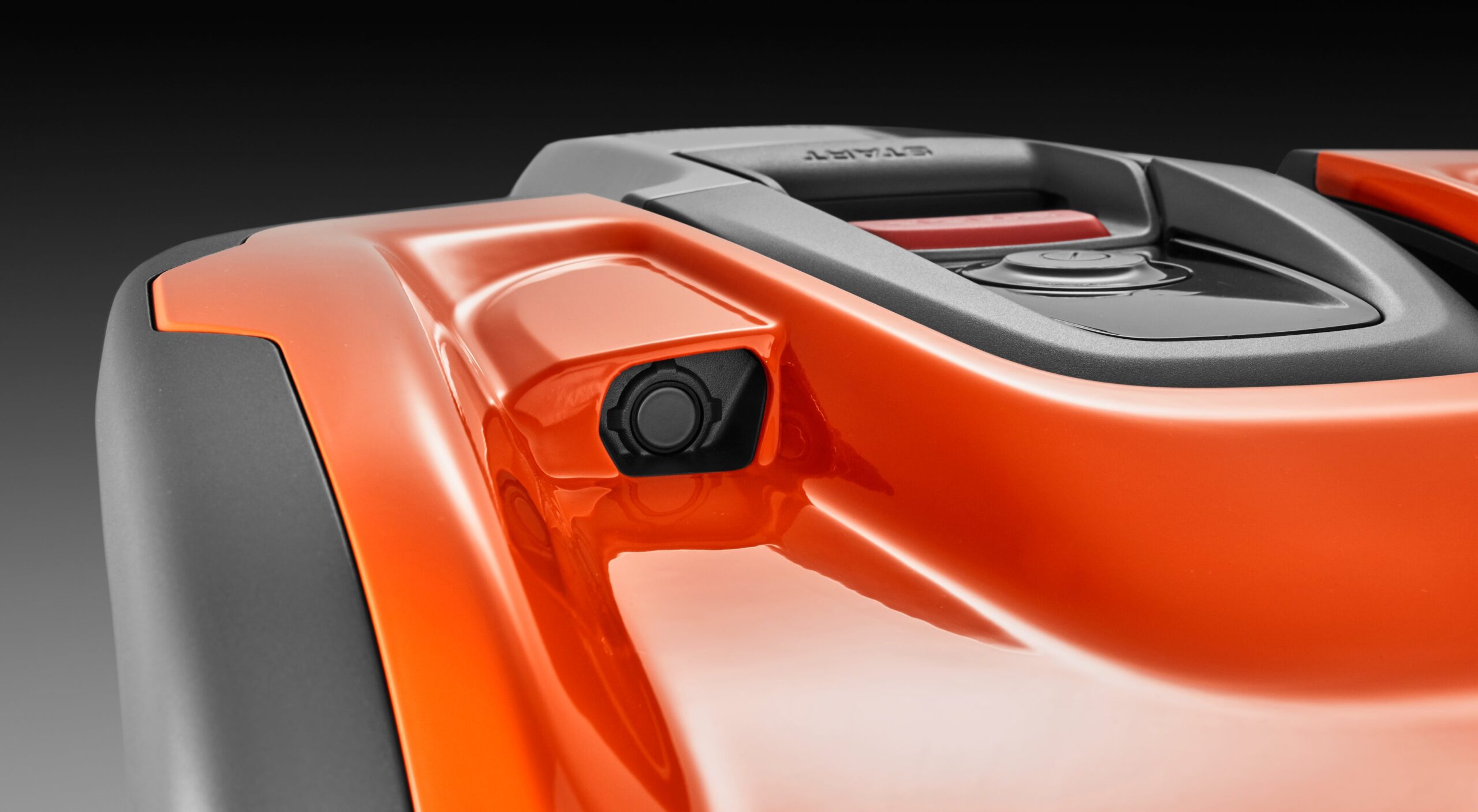

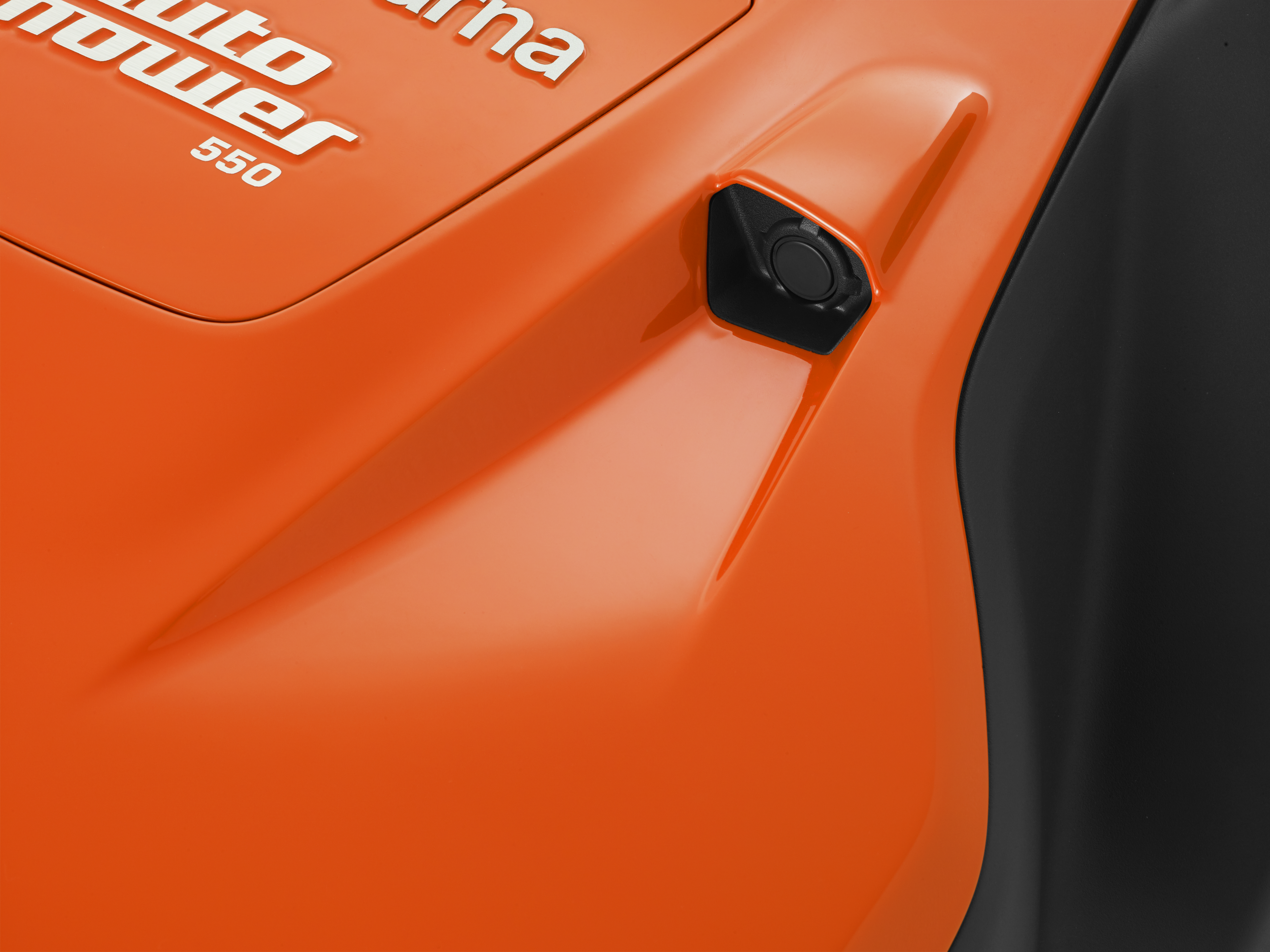

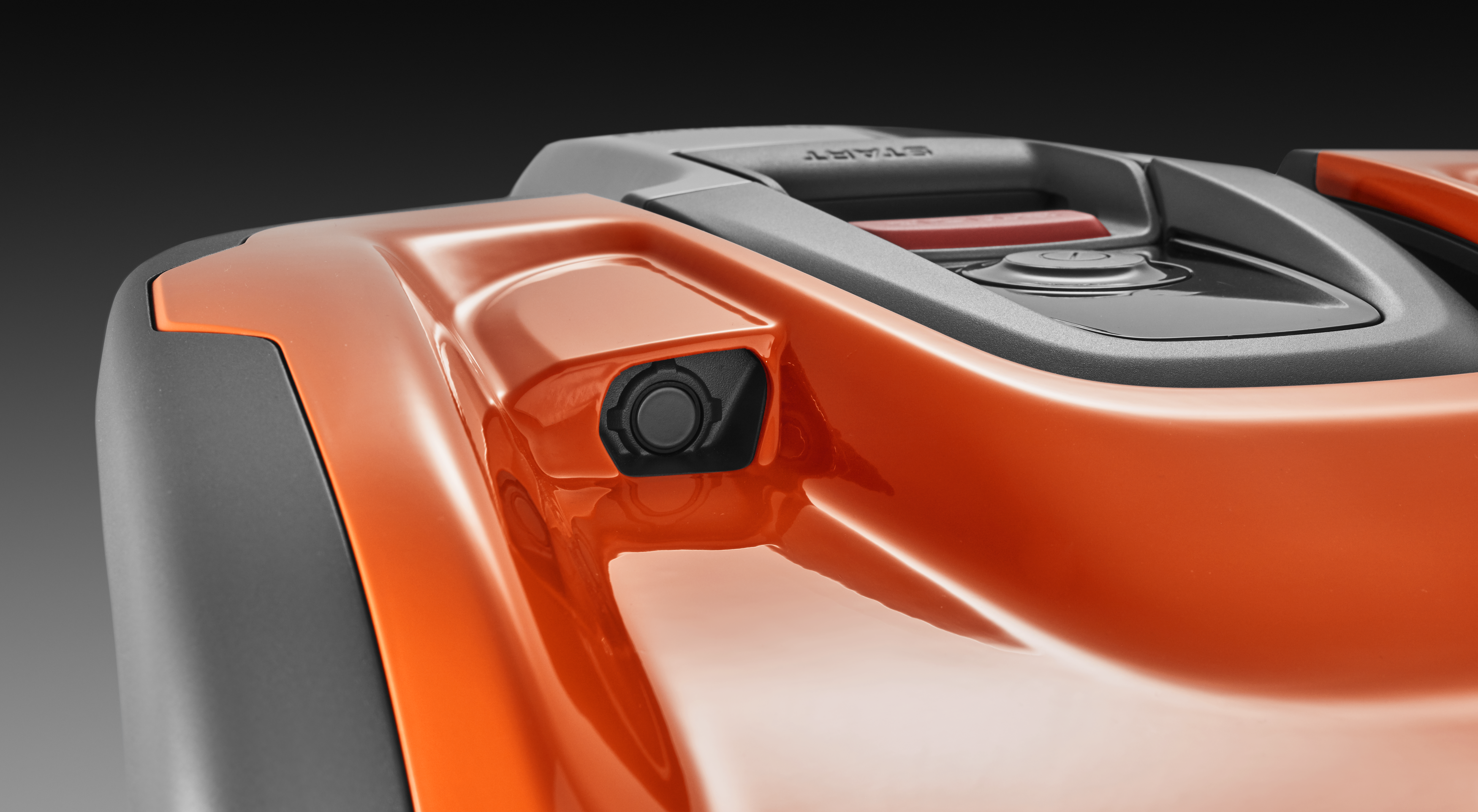

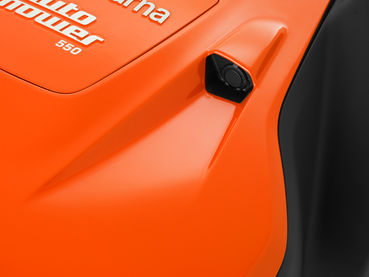

• Remote object detection

  Built-in sensors using ultrasonic technology helps the mower to detect objects, lowers the speed and avoid hard collisions.



• Built-in Theft Protection

  To reduce risk of theft, an alarm sounds if the mower is lifted and can only be deactivated with your unique PIN code. Additionally, GPS enabled tracking allows you to view your mower’s location at all times.

• EPOS® guidance

  Automatically calculates the most efficient route to and from the charging station’s docking point. It will vary its route on the lawn to avoid unpleasant tracks.

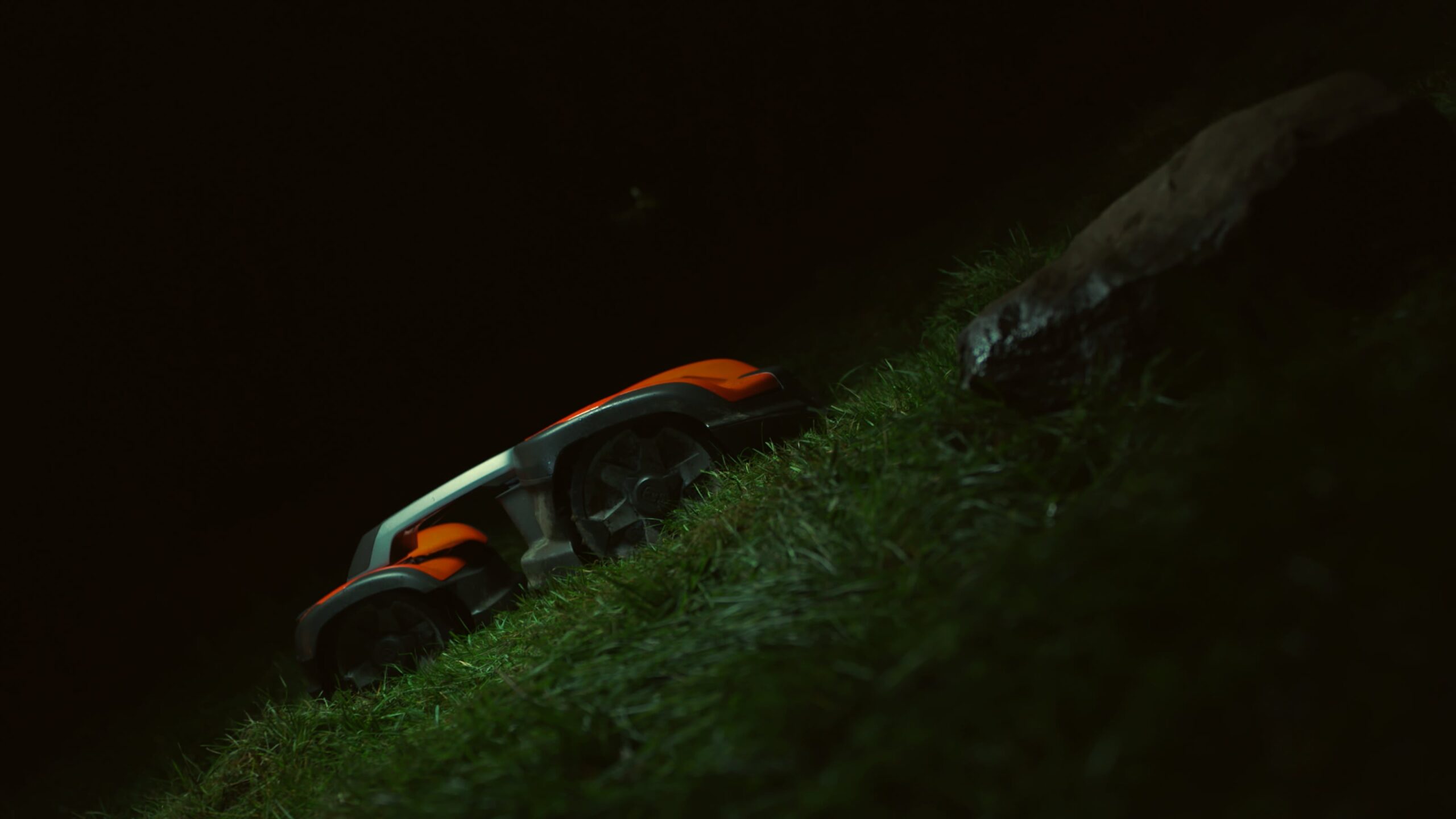

• Warning lights

  Warning lights with pulsating or solid light to create awareness during operation at night. Reduces the risk of accidents in public work environments.

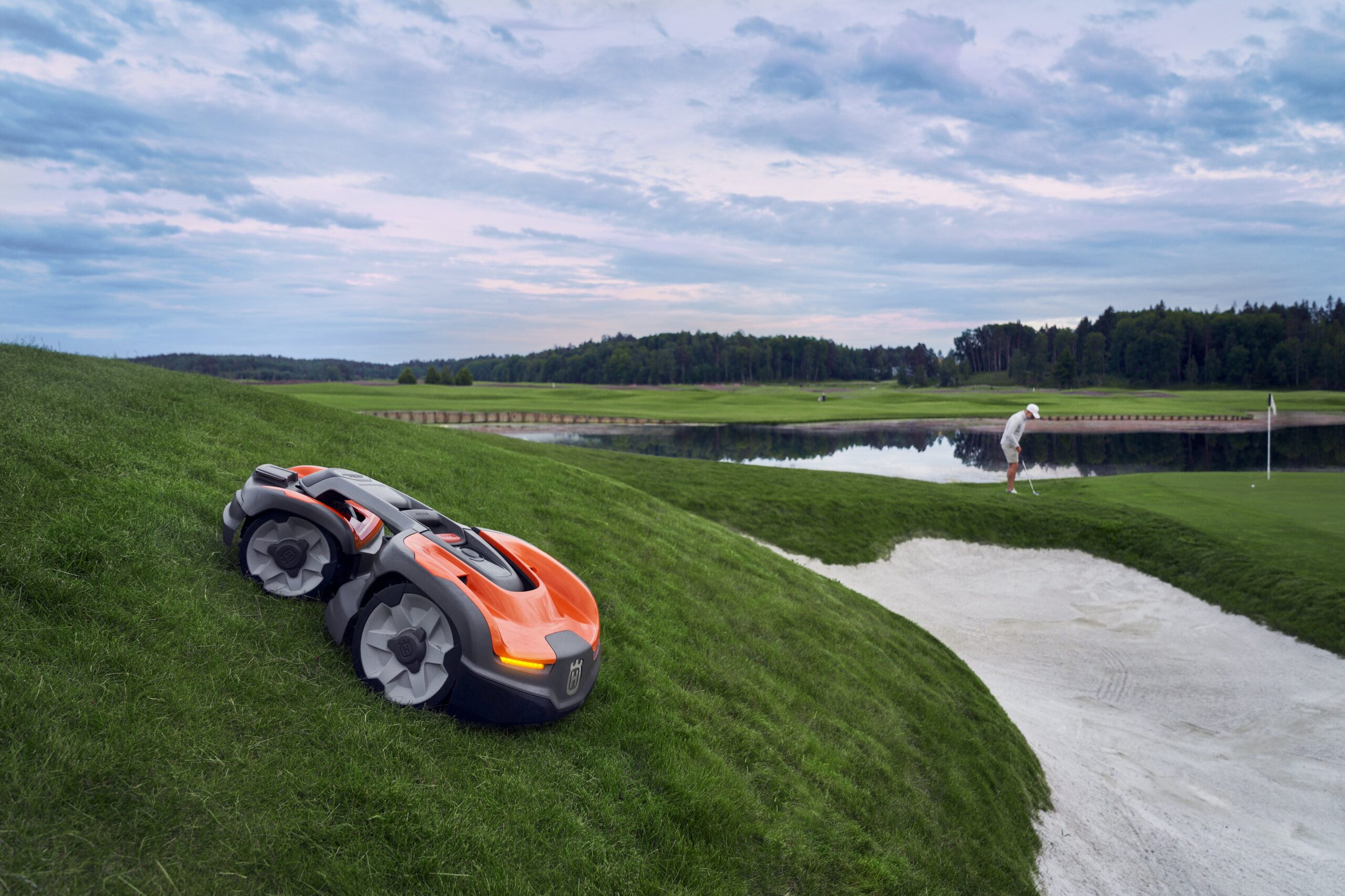

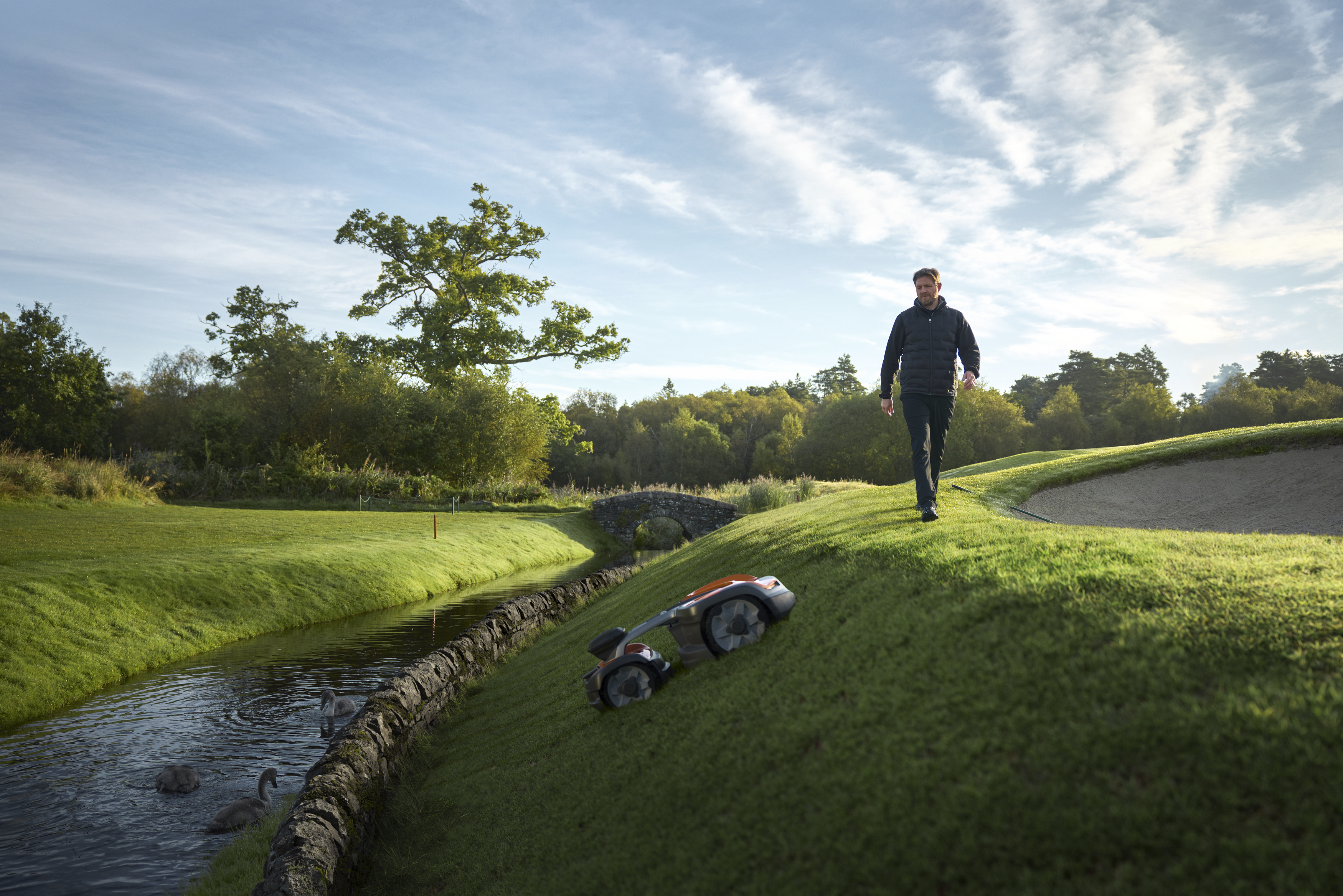

• All-Wheel Drive

  Automower® AWD models feature technology that optimizes the control of each individual wheel in order to enable superior operation in the most demanding terrain. With an impressive slope performance that handles 70 % (35°) incline. Automower® AWD rewrites the rules for autonomous maintenance of green spaces, improving the safety of your workforce.

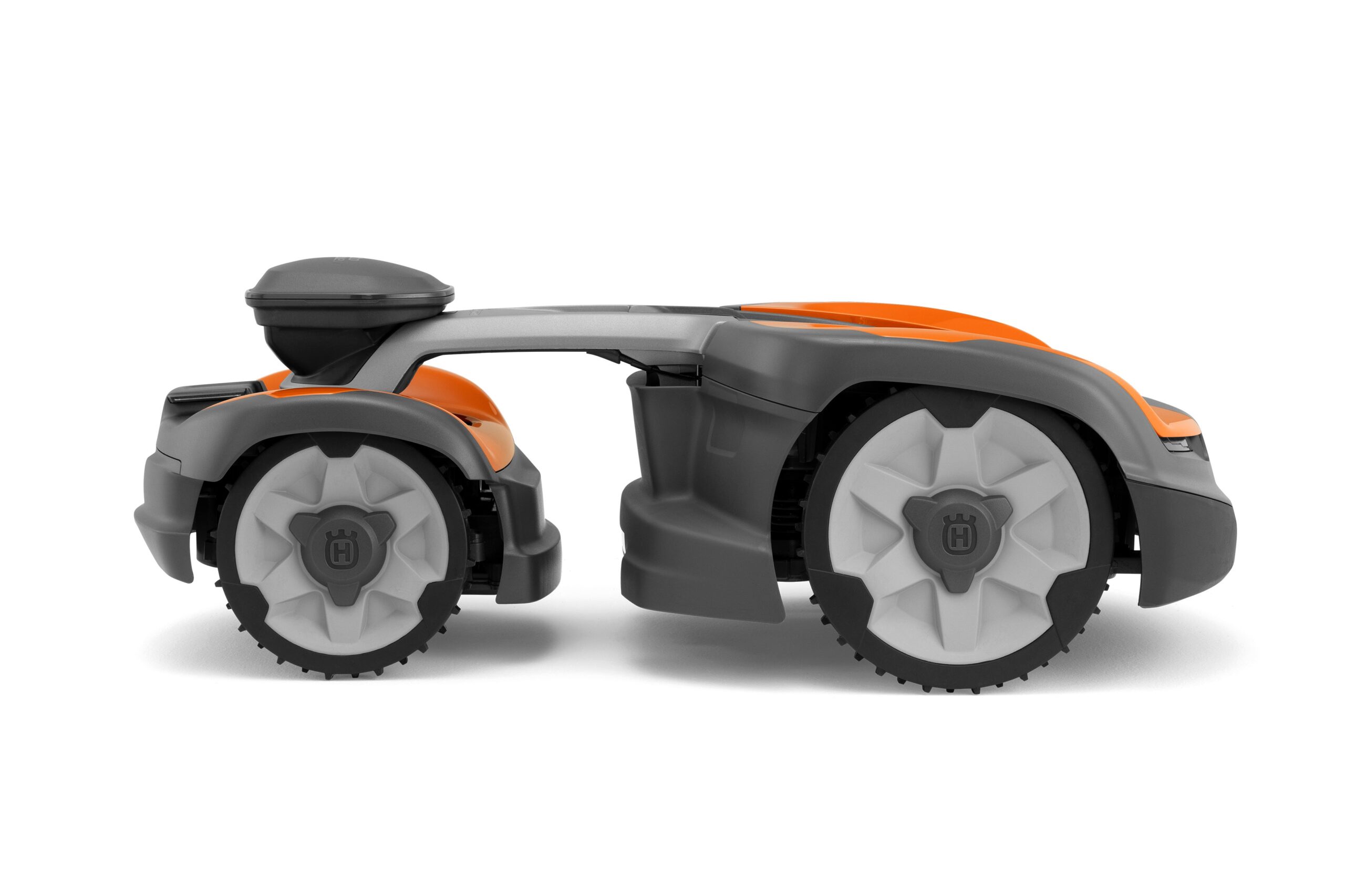

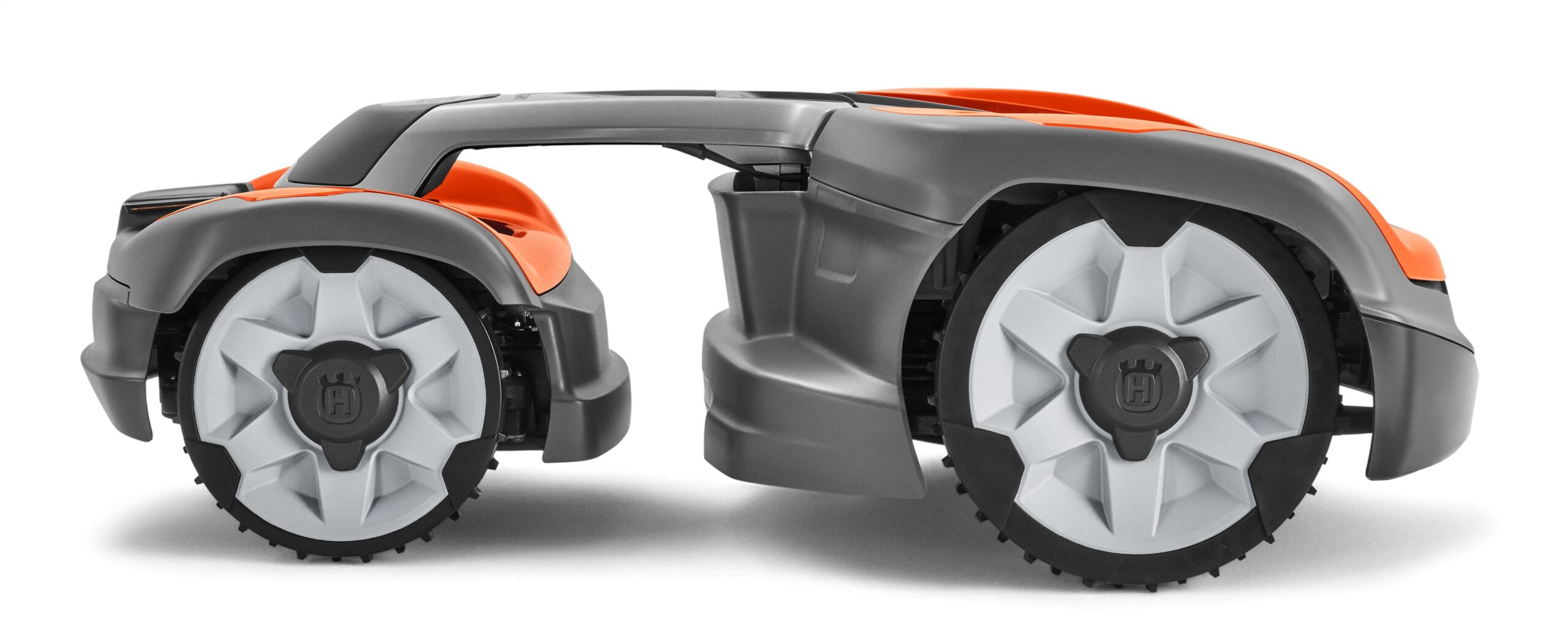

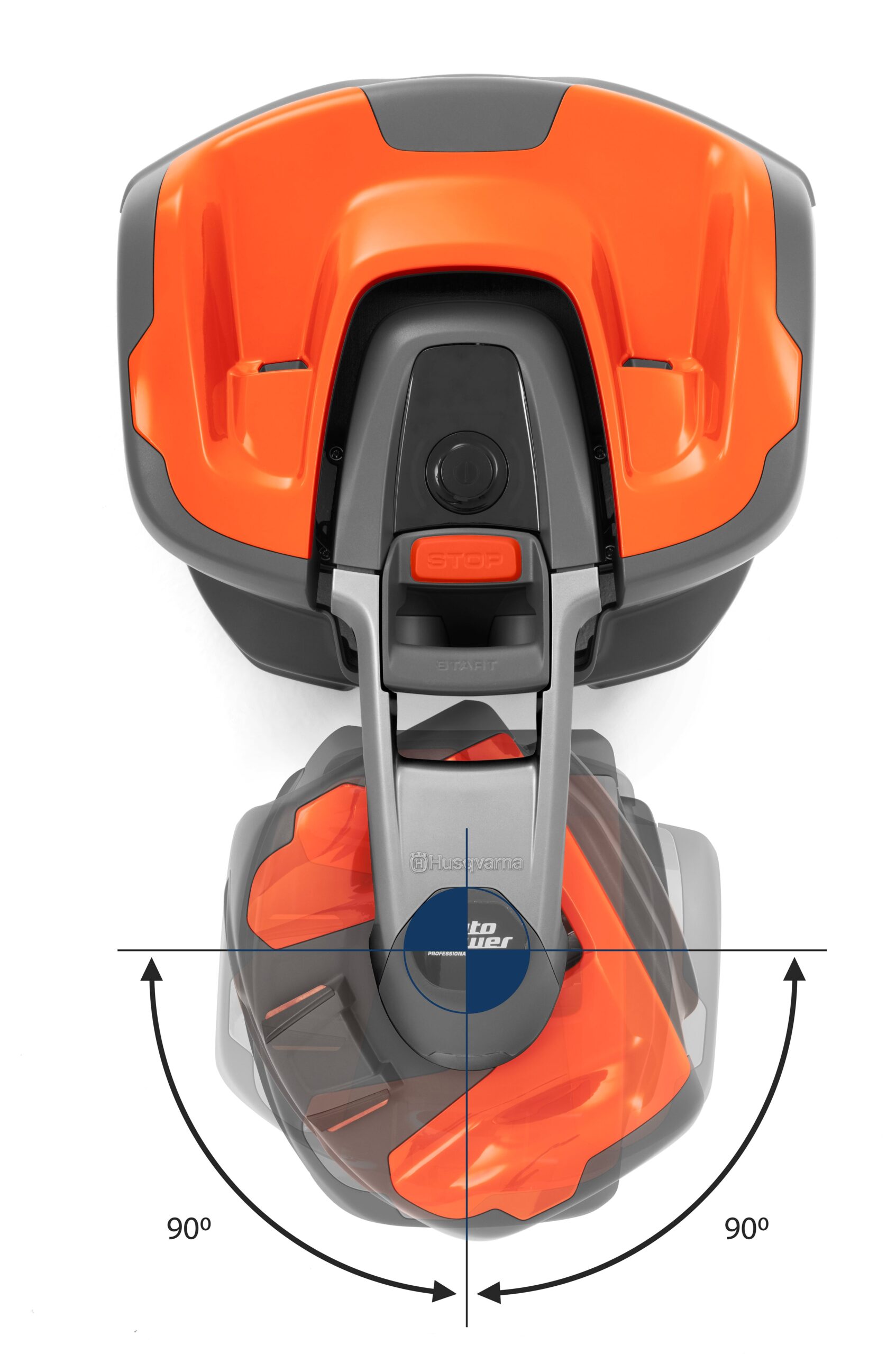

• Pivoting rear body design

  The articulated rear body design enables excellent maneuverability for navigation on complex lawns and through passages. The rear body also has a pivoting capability, considerably enhancing the traction in rough terrain, making the most out of the AWD operation on Automower® AWD models.

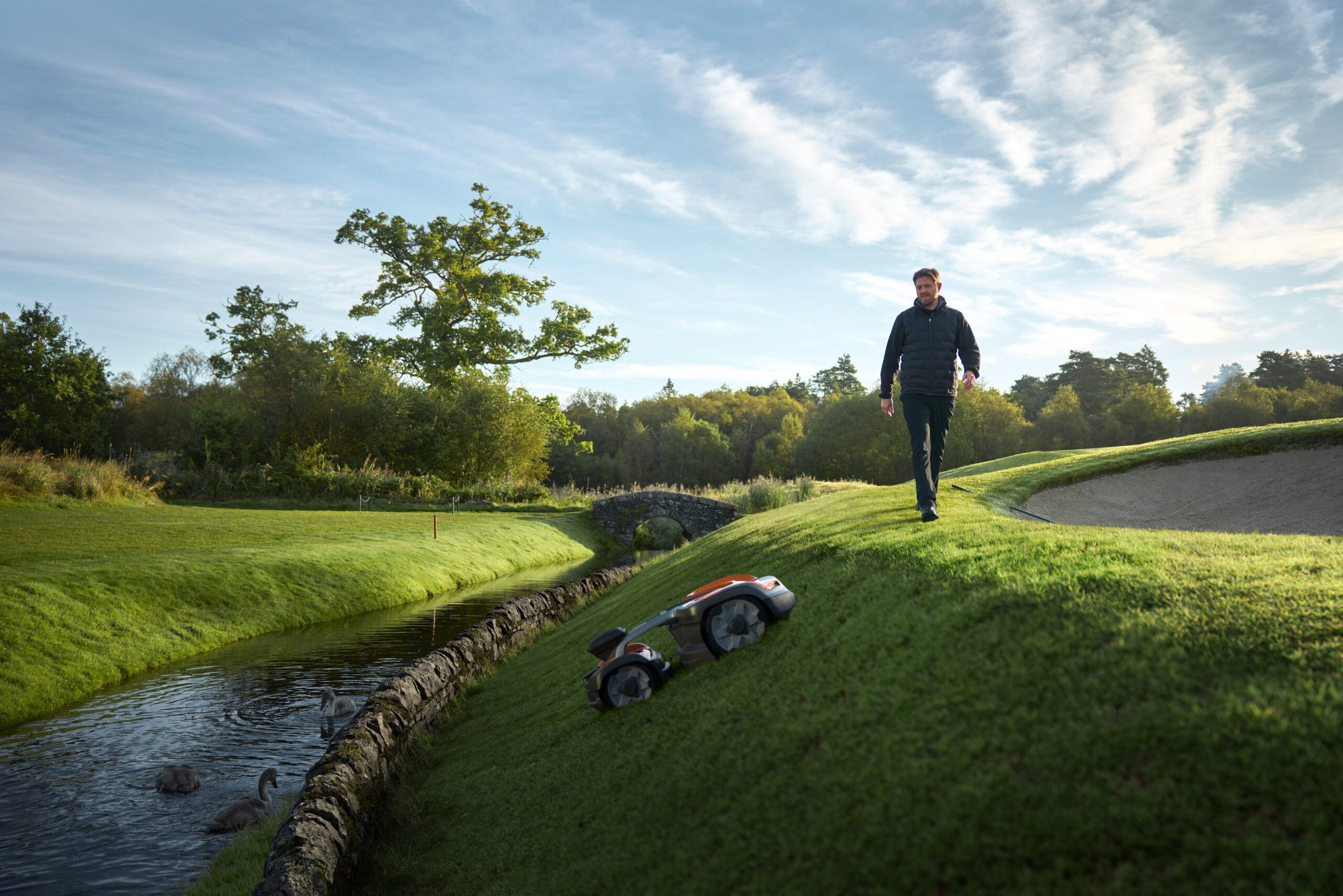

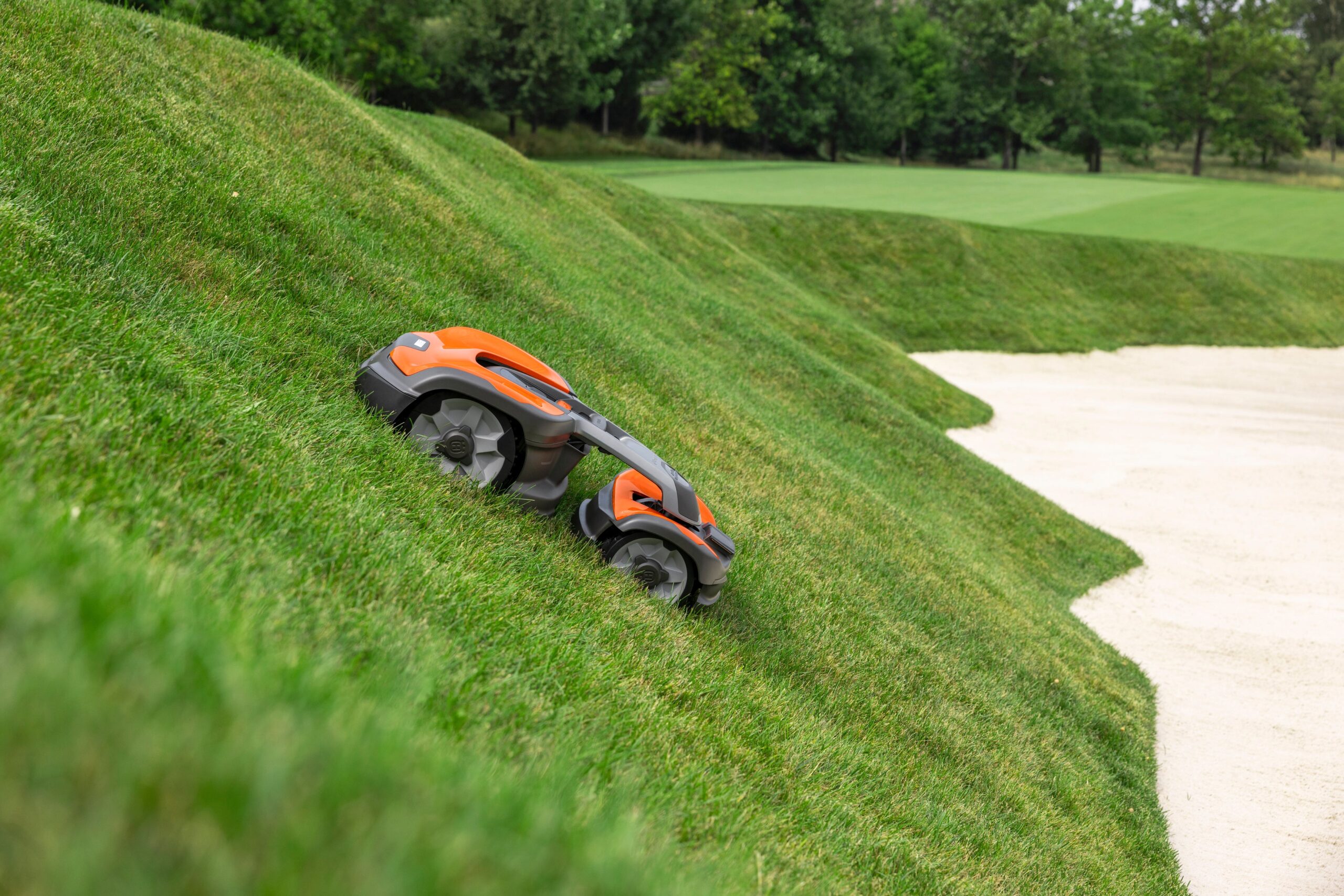

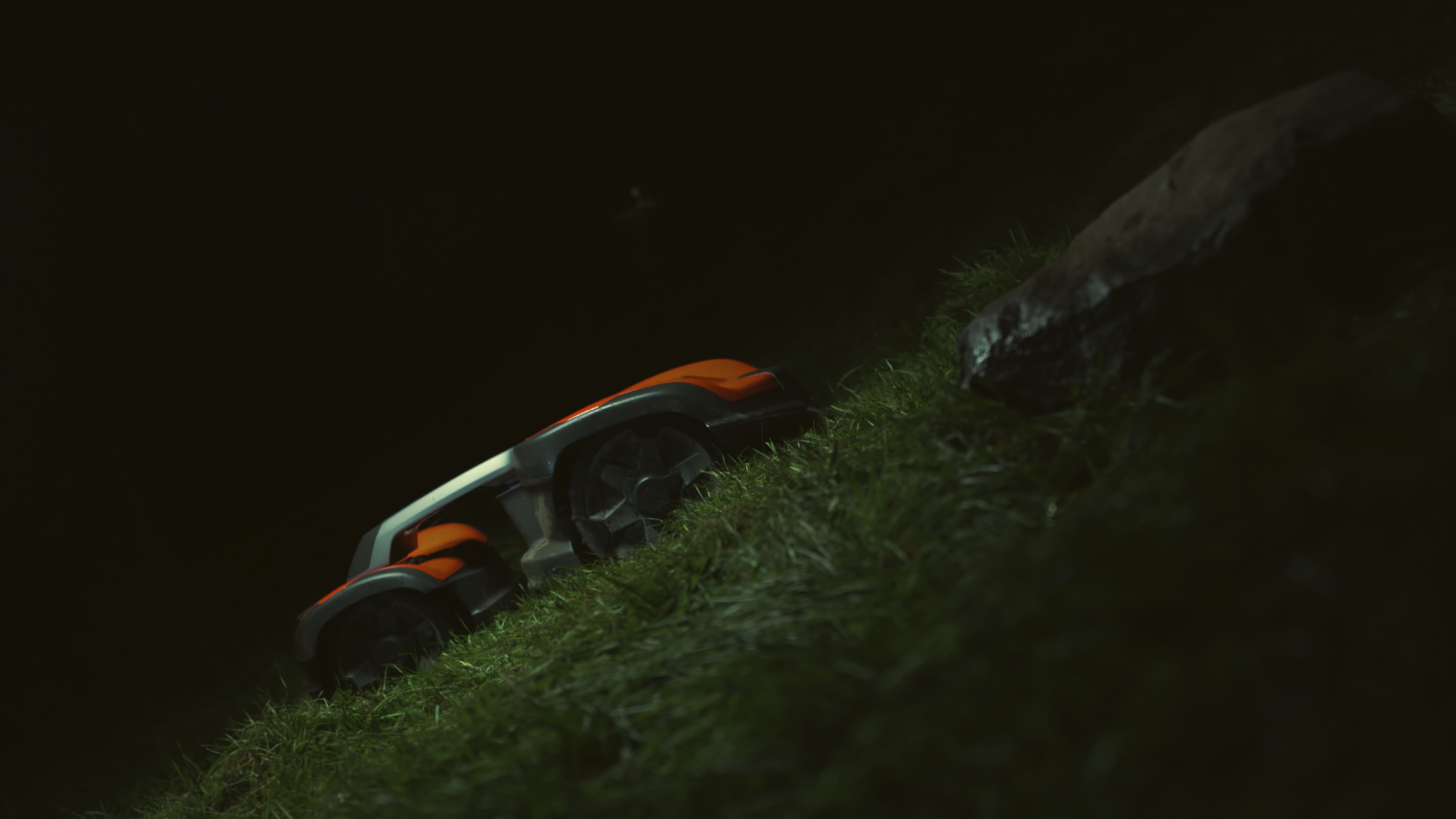

• Manages slopes up to 70%

  Large coarse-tread wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 70%.

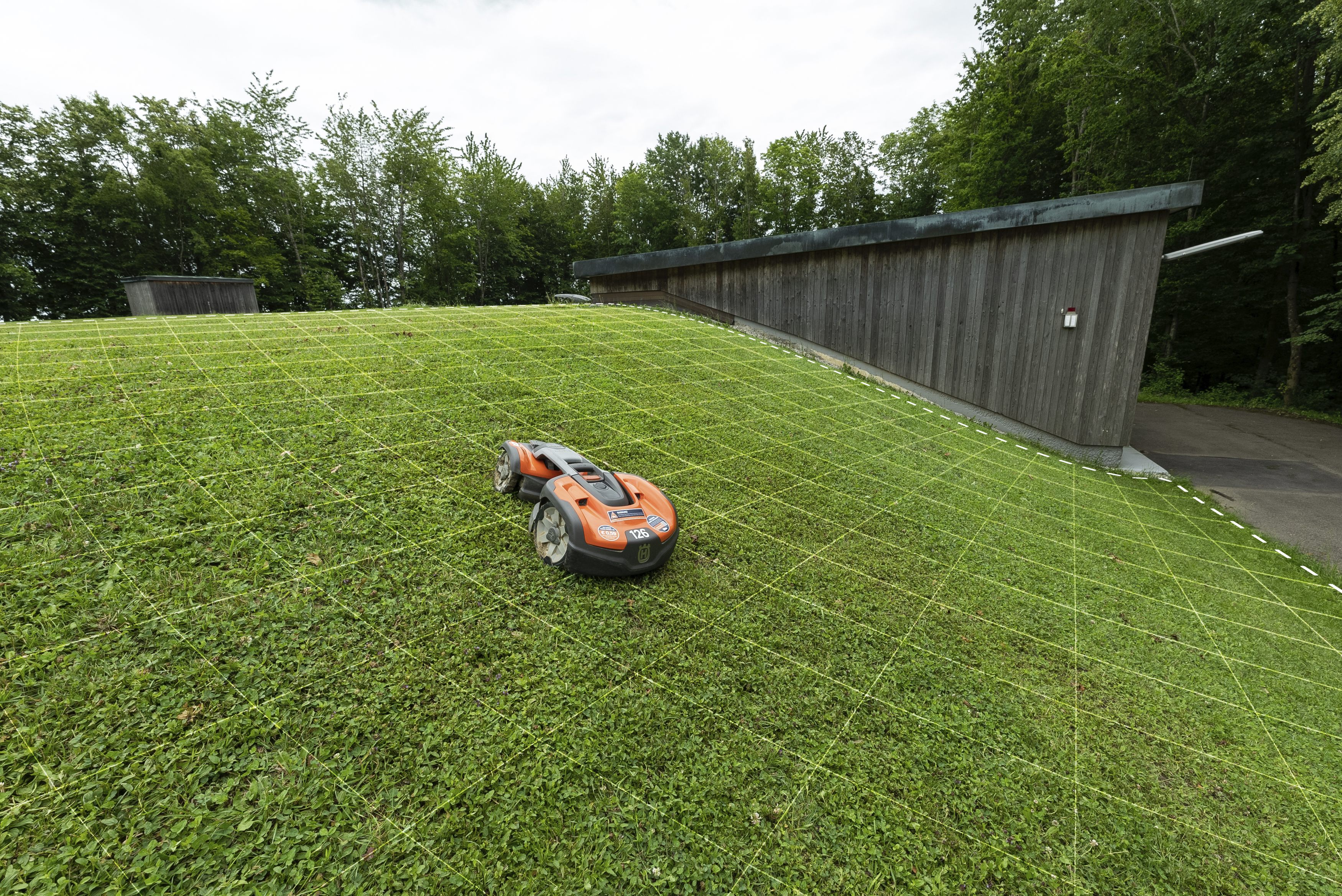

• Husqvarna EPOS® wire-free Technology

  Virtual, wire-free operation through satellite based RTK-GNSS technology, enables an accuracy down to approximately 2cm. The absence of physical wires implies a new level of robustness and flexibility, permitting regular deep aeration and turf repair without jeopardizing the function of the robot installation.



• Temporary stay-out zones

  When the need arises, create temporary stay-out zones in your robot installation. Activates or deactivates quick and easy through the mobile app. Practically useful if part of the surface area needs to be restricted for a temporary construction work, seeding or during events.



• Customized work areas

  The fully connected product provides an opportunity to individually customize each work area with a unique time schedule, cutting height and cutting pattern. Provides tailored care for a site with multiple scattered areas.



• Maintenance point

  Designate and mark a machine maintenance parking spot on the map. On command, the product parks there automatically while waiting for service, cleaning, loading or storage.



• appDrive – operate by remote

  Seize the opportunity to operate the product using a remote control via the appDrive feature on your smartphone. The handling is easy and user-friendly, sparing you from strenuous, unnecessary lifting when the product needs to be moved between workspaces, to the service facility, or during installation.



• Safety sensors

  If Husqvarna Automower® is used correctly, the product is safe and reliable. It is equipped with several sensors, including an automatic and immediate shutdown of the cutting function if the unit tips over or is lifted from the ground. The product design ensures that the blades are positioned well away from the outer edge of the machine body for increased safety. If Automower® encounters any obstacles, it stops or changes direction, further ensuring its mowing mission.



• Weatherproof design

  Husqvarna’s robotic products are built with 30 years of experience in harsh weather types, such as the Nordic climate. They are designed to operate 24/7 throughout the grass growing season, with normal maintenance and cleaning. The unique cutting system, with free-hanging razor blades on a cutting disc, ensures the cutting result even in rainy conditions.



• Husqvarna EPOS® technology

  Husqvarna EPOS^_®(Exact Positioning Operating System) utilizes RTK GNSS technology, a satellite navigation technique that enables an accuracy down to approximately 2cm in seconds.



• All-Wheel Drive

  Automower® AWD models feature technology that optimizes the control of each individual wheel in order to enable superior operation in the most demanding terrain. With an impressive slope performance that handles 70 % (35°) incline. Automower® AWD rewrites the rules for autonomous maintenance of green spaces, improving the safety of your workforce.



• Automower® Connect App

  The Automower® Connect App offers the ability to fully control the mower and customize each work area with a unique schedule, cut height and cut pattern. When the need arises, create temporary stay out zones to activate or deactivate quickly and easily via the app.



• Maintenance Point

  Define a Maintenance point, an optional parking point on the map, for maintenance such as cleaning and service or storage, loading, etc. that the product automatically accesses on a defined Transport path.

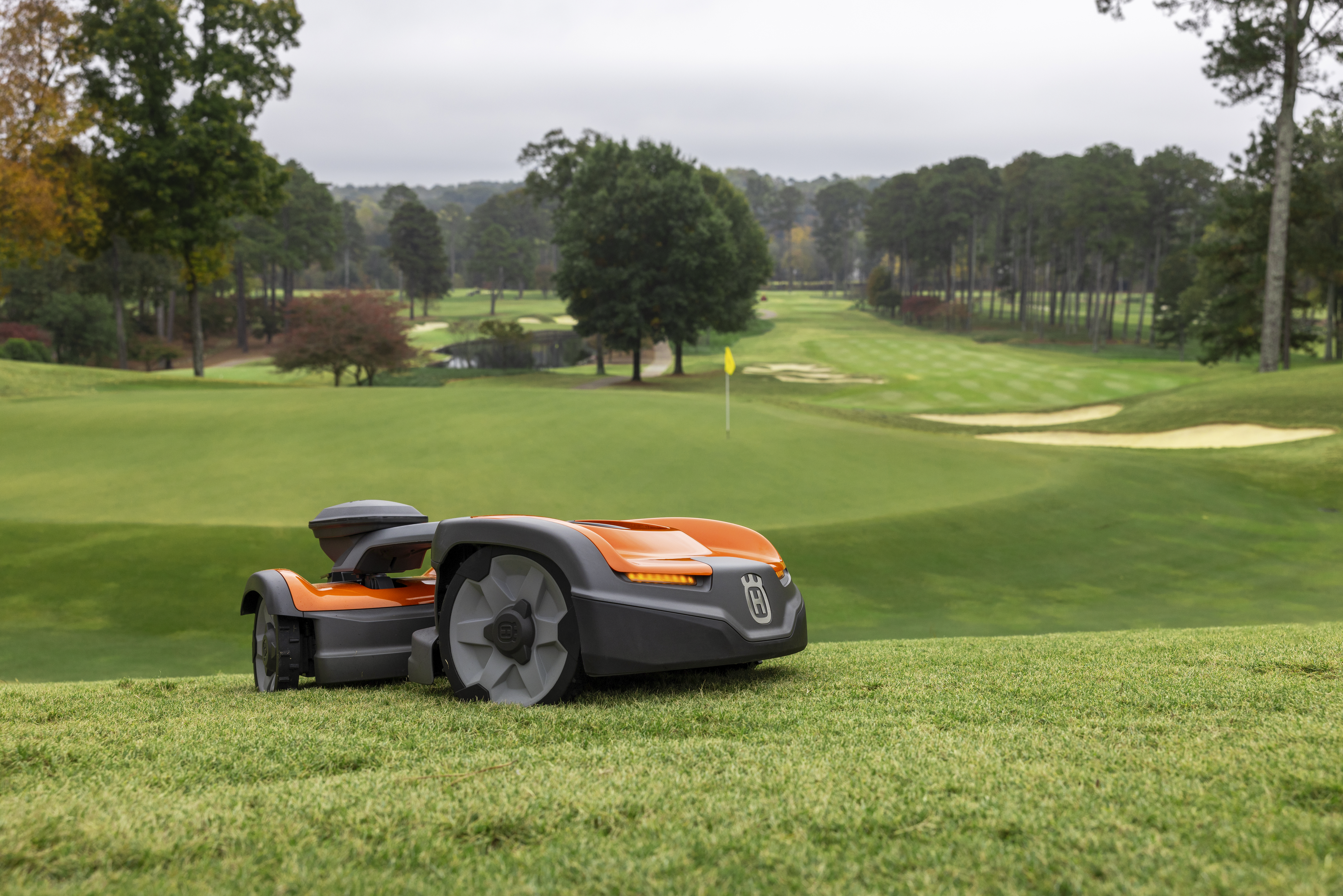

• Amber Warning Lights

  Amber warning lights with pulsating or solid light to create awareness during operation at night.



• Weatherproof Design

  Designed to operate 24/7 throughout the grass growing season, with normal maintenance and cleaning. The unique cutting system, with free-hanging razor blades on a cutting disc, ensures the cutting result even in rainy conditions.



• Unique Cutting System

  Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy turf. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides for efficient operation and extremely low energy consumption.



• Safety Features

  Equipped with several safety features, including an automatic and immediate shutdown of the cutting function if the unit tips over or is lifted from the ground and ultrasonic sensors that help the mower avoid obstacles.



Specifications

• Cuts Up To 1 Acre
• Cutting Height Adjustment: Electronic
• Schedule: Yes
• Charging Station: Yes
• Power Supply Unit: Yes
• Follow Guide: Virtual Transport Path
• Boundary Type: Virtual Wire
• Battery Type: Lithium Ion
• Skid Plate: Yes
• Dual Cutting Direction: Yes
• Product Weight: 39lbs
• Lift Sensor: Yes
• Tilt Sensor: Yes
